uP9616

Wide Input Sensorless CC/CV Synchronous-Rectified Buck Converter

uPI Semiconductor

uP9616 Features

* for the buck converter include internal softstart, adjustable external CC (Constant Output Current) limit setting, built-in fixed line-compensation, short circuit protection, VIN/VOUT over voltage protection, and over temperature protection. It is available in space saving VDFN6x5-8L and VDFN5x6-10L

uP9616 General Description

Applications The uP9616 is a high-efficiency synchronous-rectified buck converter with an internal power switch. With internal low RDS(ON) switches, the high-efficiency buck converter is capable of delivering up to 3.3A output current for charger interface and a wide input voltage range from 8V to.

uP9616 Datasheet (653.70 KB)

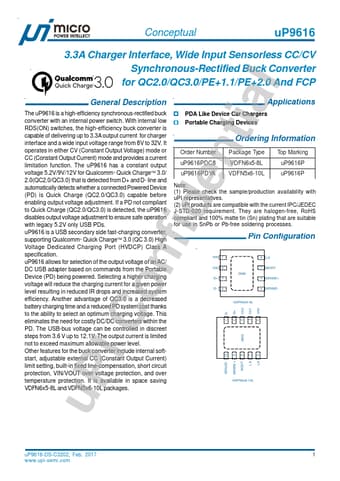

uP9616 Datasheet Preview — Preview of uP9616 PDF

Datasheet Details

Part number:

uP9616

Manufacturer:

uPI Semiconductor

File Size:

653.70 KB

Description:

Wide input sensorless cc/cv synchronous-rectified buck converter.
Conceptual uP9616 3.3A Charger Interface, Wide Input Sensorless CC/CV Synchronous-Rectified Buck Converter for QC2.0/QC3.0/PE+1.1/PE+2.0 And FCP 1 .
