UP9523 Datasheet, Regulator, UPSemi

UP9523 Features

  • Regulator
  • High Efficiency: Up to 93%
  • 2A Output Current
  • 4.75V to 20V Input Voltage Range
  • Fixed 390KHz Frequency
  • 0.2Ω Internal Power MOSFET Switch

PDF File Details

Part number:

UP9523

Manufacturer:

UPSemi

File Size:

153.02kb

Download:

📄 Datasheet

Description:

2a step-down dc/dc regulator. The UP9523 is a high efficiency DC/DC buck regulator with a built-in power MOSFET. It can conduct 2A continuous output current over

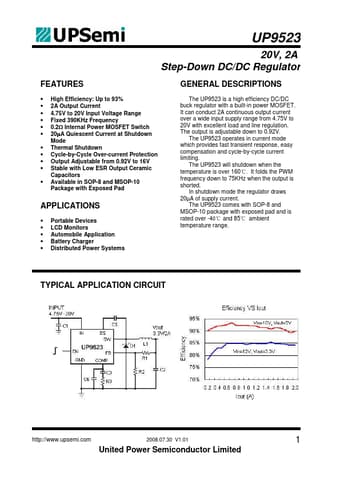

Datasheet Preview: UP9523 📥 Download PDF (153.02kb)
Page 2 of UP9523 Page 3 of UP9523

UP9523 Application

  • Applications
  • Portable Devices
  • LCD Monitors
  • Automobile Application
  • Battery Charger
  • Distributed Powe
