AMEL10-AZ - AC-DC / DC-DC Converter

Features

  • I/O Isolation 3000VAC.
  • RoHS Compliant.
  • Operating Temp: -40 oC to +80 oC.
  • Energy Star Compliant.
  • Input: 90-305VAC, 47-440Hz, or 130-430VDC.
  • Efficiency up to 83%.
  • Over Load, Over Voltage, Short Circuit Protection.
  • Soft Start Models Single output CB Model AMEL10-3.3SAZ AMEL10-5SAZ AMEL10-12SAZ AMEL10-15SAZ AMEL10-24SAZ Input Voltage (VAC/Hz) 90-305/47-440 90-305/47-440 90-305/47-440 90-305/47-440 90-305/47-440 Input Voltage (VDC) 130-430 130-430.

📥 Download Datasheet

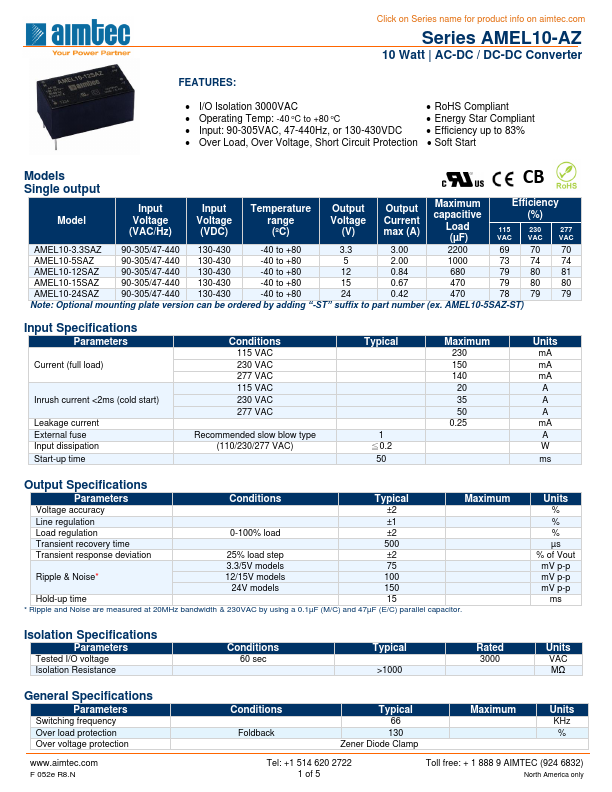

Datasheet preview – AMEL10-AZ

Datasheet Details

Part number AMEL10-AZ
Manufacturer AIMTEC
File Size 586.22 KB
Description AC-DC / DC-DC Converter
Datasheet download datasheet AMEL10-AZ Datasheet
Additional preview pages of the AMEL10-AZ datasheet.

📁 Similar Datasheet

  • AME1084 - 5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1085 - 3A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1086 - 1.5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1117 - 1A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1505 - High Power BiPolar Linear LDO (Analog Microelectronics)
  • AME200 - magnetic rotary encoder (Alfa Electronics)
  • AME201610T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME252010T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME252012T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME256 - magnetic rotary encoder (Alfa Electronics)
Other Datasheets by AIMTEC
  • AMEL10-MAZ - AC-DC / DC-DC Converter
  • AMEL10 - 10 watt encapsulated ac-dc converter
  • AMEL05 - 5 watt encapsulated ac-dc converter
  • AMEL20-AZ - AC-DC / DC-DC Converter
  • AMEL20-MAZ - AC-DC / DC-DC Converter
  • AMEL5-AZ - AC-DC / DC-DC Converter
  • AMEL5-MAZ - AC-DC / DC-DC Converter
  • AME05 - 5 watt encapsulated ac-dc converter

Full PDF Text Transcription

Click to expand full text
Click on Series name for product info on aimtec.com Series AMEL10-AZ 10 Watt | AC-DC / DC-DC Converter FEATURES:  I/O Isolation 3000VAC  RoHS Compliant  Operating Temp: -40 oC to +80 oC  Energy Star Compliant  Input: 90-305VAC, 47-440Hz, or 130-430VDC  Efficiency up to 83%  Over Load, Over Voltage, Short Circuit Protection  Soft Start Models Single output CB Model AMEL10-3.3SAZ AMEL10-5SAZ AMEL10-12SAZ AMEL10-15SAZ AMEL10-24SAZ Input Voltage (VAC/Hz) 90-305/47-440 90-305/47-440 90-305/47-440 90-305/47-440 90-305/47-440 Input Voltage (VDC) 130-430 130-430 130-430 130-430 130-430 Temperature range (ºC) -40 to +80 -40 to +80 -40 to +80 -40 to +80 -40 to +80 Output Voltage (V) 3.3 5 12 15 24 Output Current max (A) 3.00 2.00 0.84 0.67 0.
