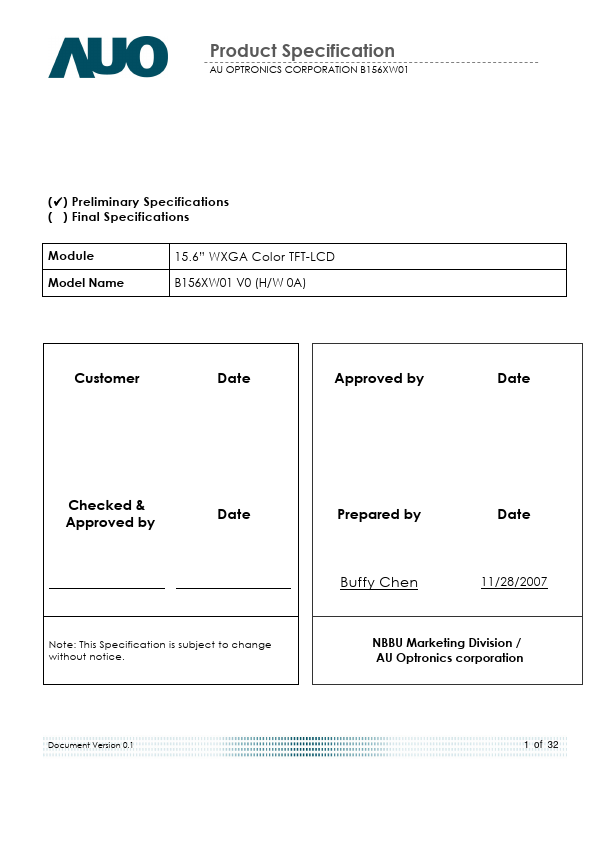

Overview: www.DataSheet4U.net Product Specification AU OPTRONICS CORPORATION B156XW01 ( ) Preliminary Specifications ( ) Final Specifications Module Model Name 15.6” WXGA Color TFT-LCD B156XW01 V0 (H/W 0A) Customer Date Approved by Date Checked & Approved by Date Prepared by Date Buffy Chen 11/28/2007 Note: This Specification is subject to change without notice. NBBU Marketing Division / AU Optronics corporation Document Version 0.1 1 of 32 www.DataSheet4U.net Product Specification AU OPTRONICS CORPORATION B156XW01 Contents 1. Handling Precautions....................................................................................... 4 2.
