Datasheet Details
| Part number | B156XW02-V1 |
|---|---|
| Manufacturer | AU Optronics |
| File Size | 599.32 KB |
| Description | LCD Module |
| Datasheet | B156XW02-V1_AUO.pdf |
|
|

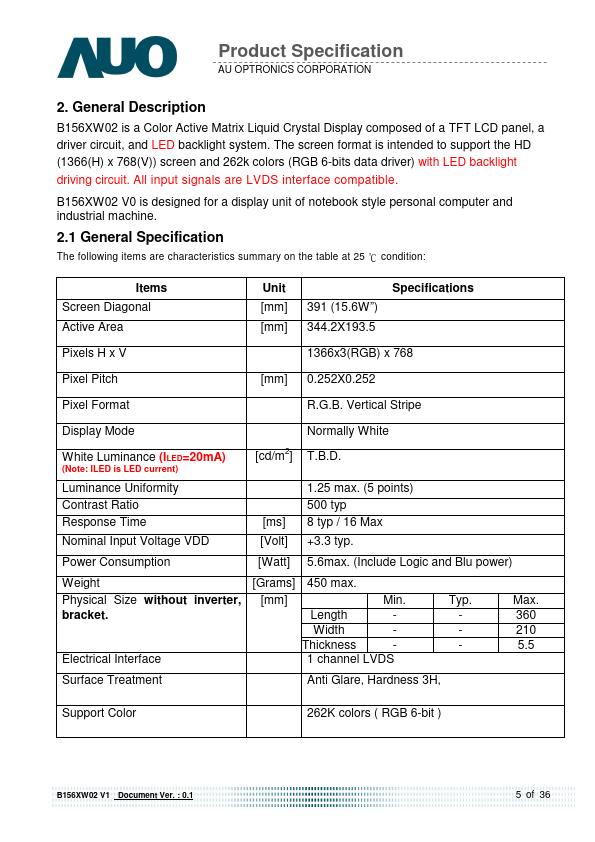

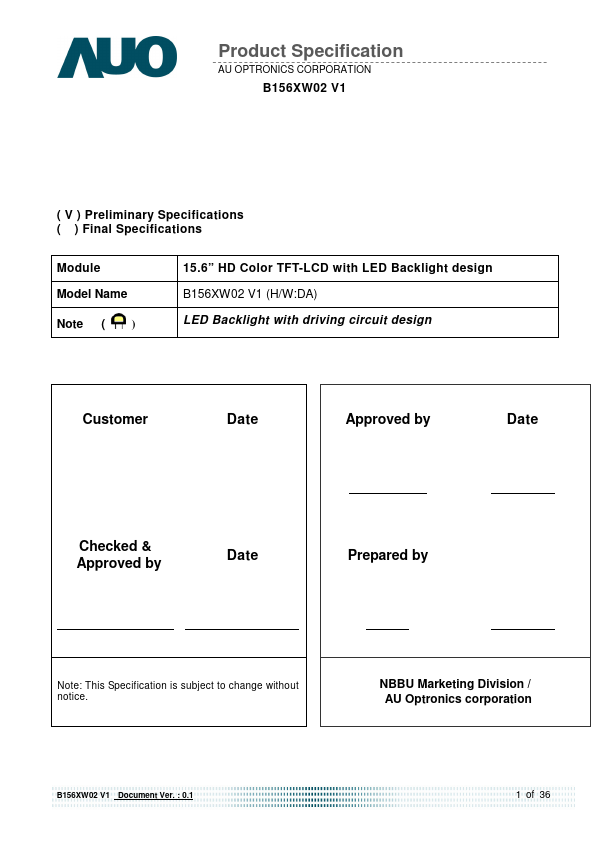

Overview: ..net Product Specification AU OPTRONICS CORPORATION B156XW02 V1 ( V ) Preliminary Specifications ( ) Final Specifications Module Model Name Note ( ) 15.6” HD Color TFT-LCD with LED Backlight design B156XW02 V1 (H/W:DA) LED Backlight with driving circuit design Customer Date Approved by Date Checked & Approved by Date Prepared by Note: This Specification is subject to change without notice. NBBU Marketing Division / AU Optronics corporation B156XW02 V1 Document Ver. : 0.1 1 of 36 ..net Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions .............................................................. 4 2.
| Part number | B156XW02-V1 |
|---|---|
| Manufacturer | AU Optronics |
| File Size | 599.32 KB |
| Description | LCD Module |
| Datasheet | B156XW02-V1_AUO.pdf |
|
|
|
................................................................

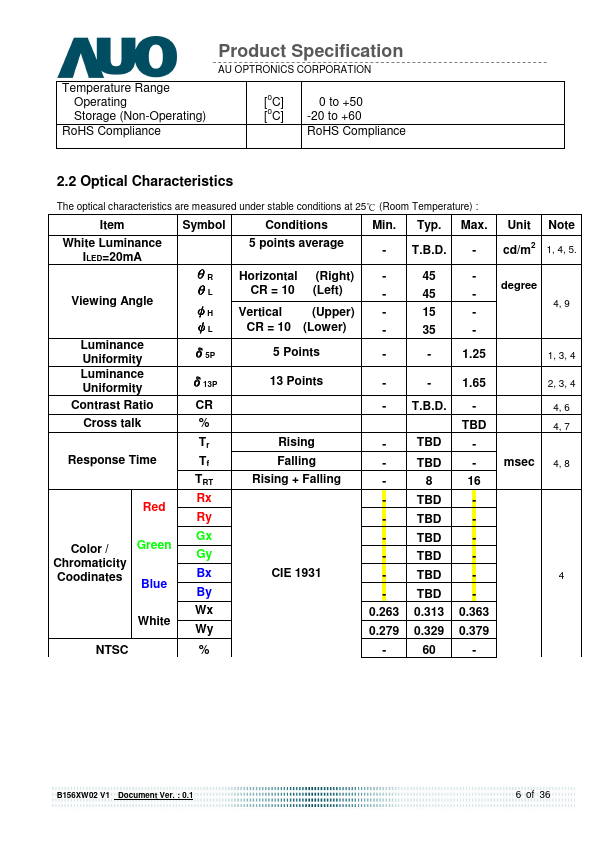

5 2.1 General Specification ..........................................................................................................................5 2.2 Optical Characteristics ........................................................................................................................6 3.
Functional Block Diagram .....................................................
