B156XW02-V6
B156XW02-V6 is HD 16:9 Color TFT-LCD manufactured by AU Optronics.

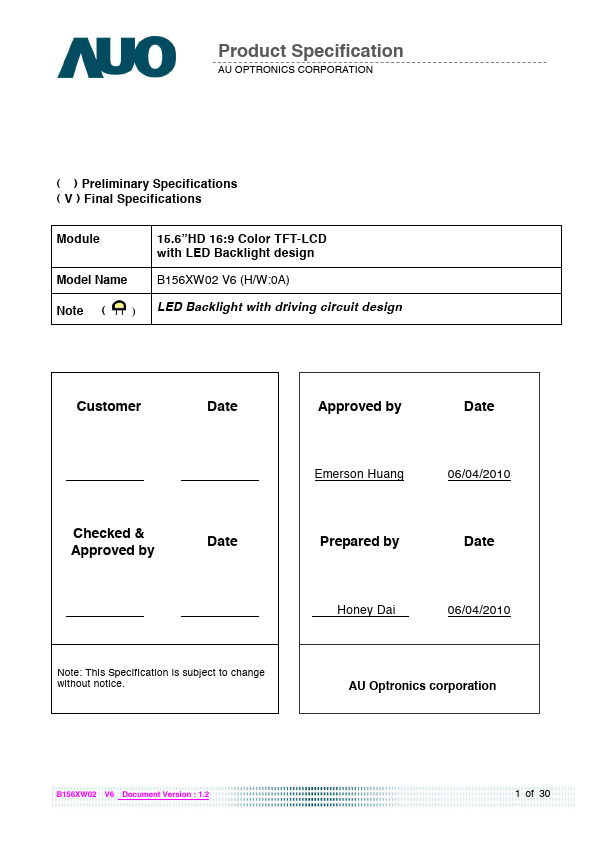

Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications ( V ) Final Specifications
Module Model Name Note ( )
15.6”HD 16:9 Color TFT-LCD with LED Backlight design
B156XW02 V6 (H/W:0A)
LED Backlight with driving circuit design
Customer
Date
Approved by
Date
Checked & Approved by
Date
Emerson Huang
06/04/2010
Prepared by
Date
Honey Dai
06/04/2010
Note: This Specification is subject to change without notice.
AU Optronics corporation
B156XW02 V6 Document Version : 1.2
1 of 30
Product Specification
AU OPTRONICS CORPORATION

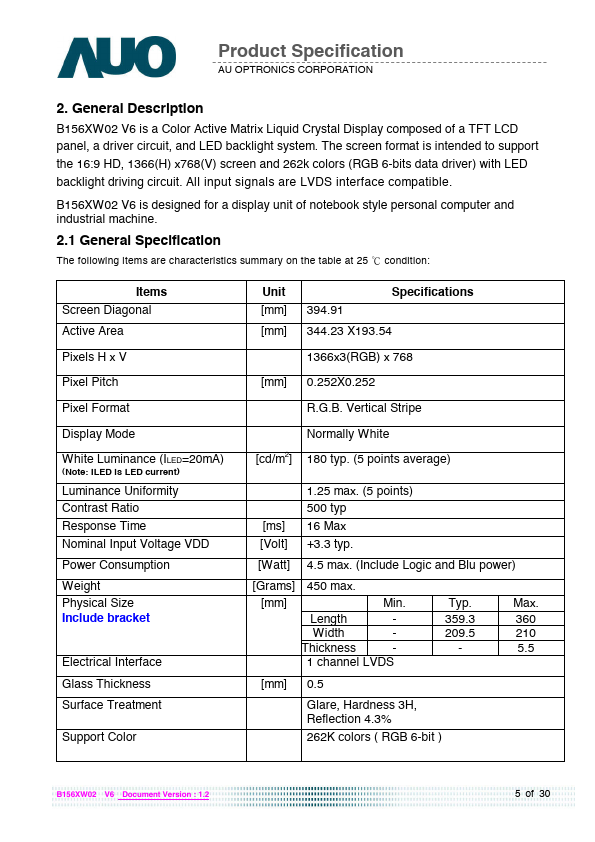

2. General Description
B156XW02 V6 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit,...
