G156XTT01.1 - 15.6 Inch Color TFT-LCD

Description

3.

Functional Block Diagram 12 4.

5.

📥 Download Datasheet

Datasheet preview – G156XTT01.1

Datasheet Details

Part number G156XTT01.1
Manufacturer AUO
File Size 1.31 MB
Description 15.6 Inch Color TFT-LCD
Datasheet download datasheet G156XTT01.1 Datasheet
Additional preview pages of the G156XTT01.1 datasheet.

📁 Similar Datasheet

  • G1561 - Rail to Rail Input-Output VCOM Buffer (GMT)
  • G1562 - Single Rail-to-Rail Operational Amplifiers (GMT)
  • G1563 - Dual Rail-to-Rail Operational Amplifiers (GMT)
  • G1564 - Quadruple Rail-to-Rail Operational Amplifiers (GMT)
  • G156BGE-L01 - TFT LCD (Innolux)
  • G156BGE-L03 - TFT LCD Module (INNOLUX)
  • G156HCE-E01 - TFT LCD Module (INNOLUX)
  • G156HCE-L01 - TFT LCD (INNOLUX)
  • G156HCE-LN1 - TFT LCD (INNOLUX)
  • G1505S-2WR2 - DC/DC Converter (MORNSUN)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

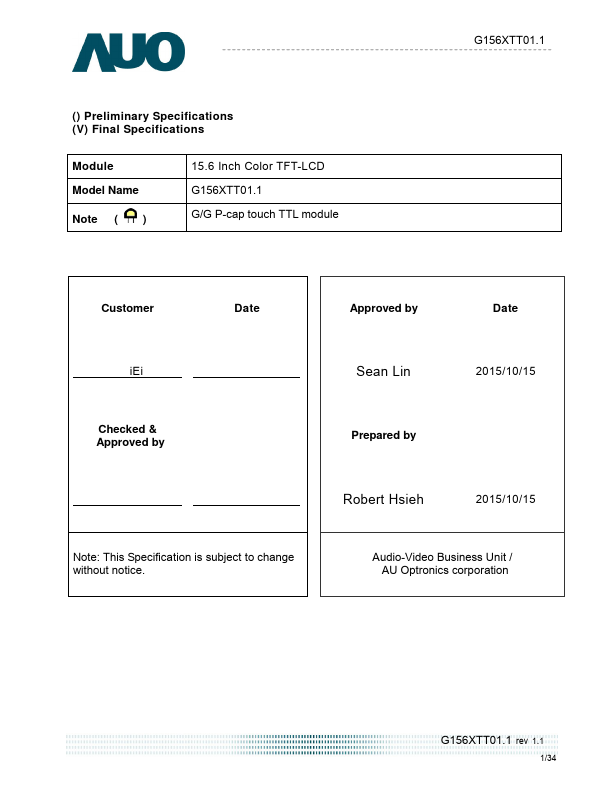

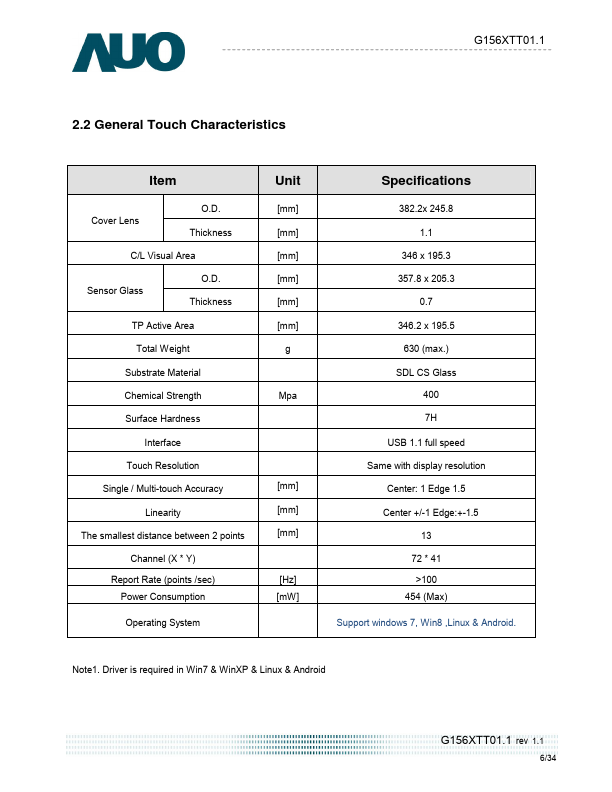

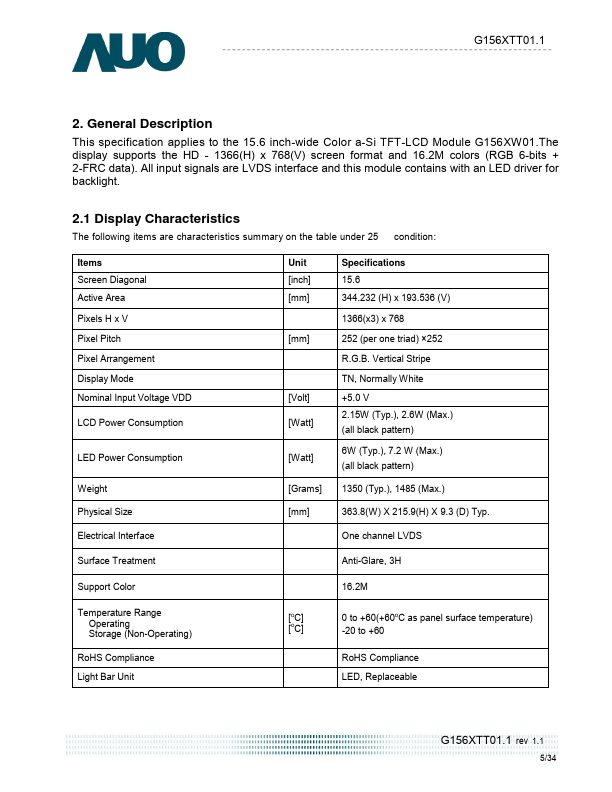

() Preliminary Specifications (V) Final Specifications Module Model Name Note ( ) 15.6 Inch Color TFT-LCD G156XTT01.1 G/G P-cap touch TTL module G156XTT01.1 Customer Date Approved by Date iEi Sean Lin 2015/10/15 Checked & Approved by Prepared by Robert Hsieh 2015/10/15 Note: This Specification is subject to change without notice. Audio-Video Business Unit / AU Optronics corporation Provided by www.display-solution.com G156XTT01.1 rev 1.1 1/34 info@display-solution.com G156XTT01.1 Contents 1. Operating Precautions ..................................................................................... 4 2. General Description ......................................................................................... 5 2.1 Display Characteristics ..............................
