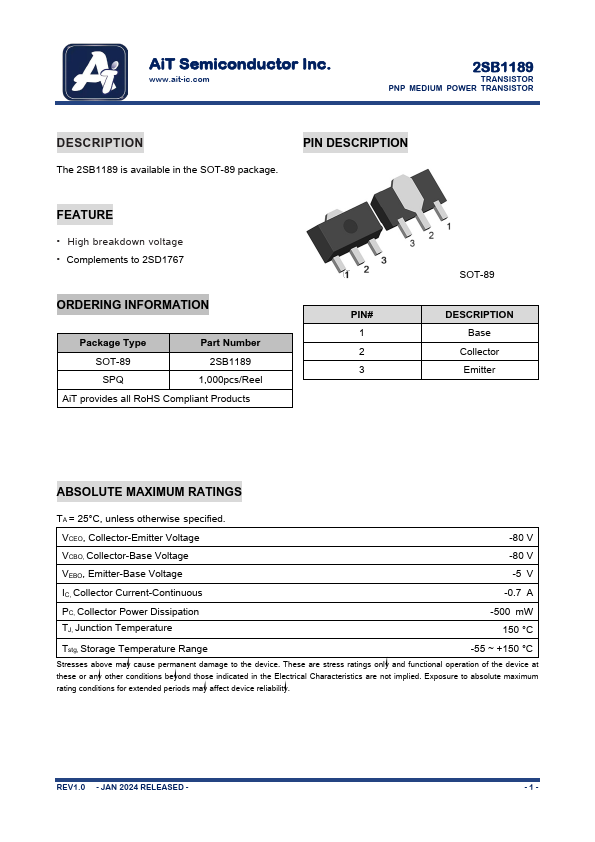

2SB1189
2SB1189 is PNP MEDIUM POWER TRANSISTOR manufactured by AiT Semiconductor.
DESCRIPTION
The 2SB1189 is available in the SOT-89 package.
PIN DESCRIPTION
FEATURE
- High breakdown voltage
- plements to 2SD1767
ORDERING INFORMATION
Package Type
Part Number
SOT-89
1,000pcs/Reel
Ai T provides all Ro HS pliant Products
PIN# 1 2 3
SOT-89
DESCRIPTION
Base
Collector Emitter
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified.
VCEO, Collector-Emitter Voltage
-80 V
VCBO, Collector-Base Voltage
-80 V
VEBO, Emitter-Base Voltage
-5 V
IC, Collector Current-Continuous
-0.7 A
PC, Collector Power Dissipation TJ, Junction Temperature
-500 m W 150 °C
Tstg, Storage Temperature Range
-55 ~ +150 °C
Stresses above may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the Electrical Characteristics are not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
REV1.0
- JAN 2024 RELEASED
- -1-
Ai T Semiconductor Inc.
.ait-ic.
TRANSISTOR PNP MEDIUM POWER TRANSISTOR

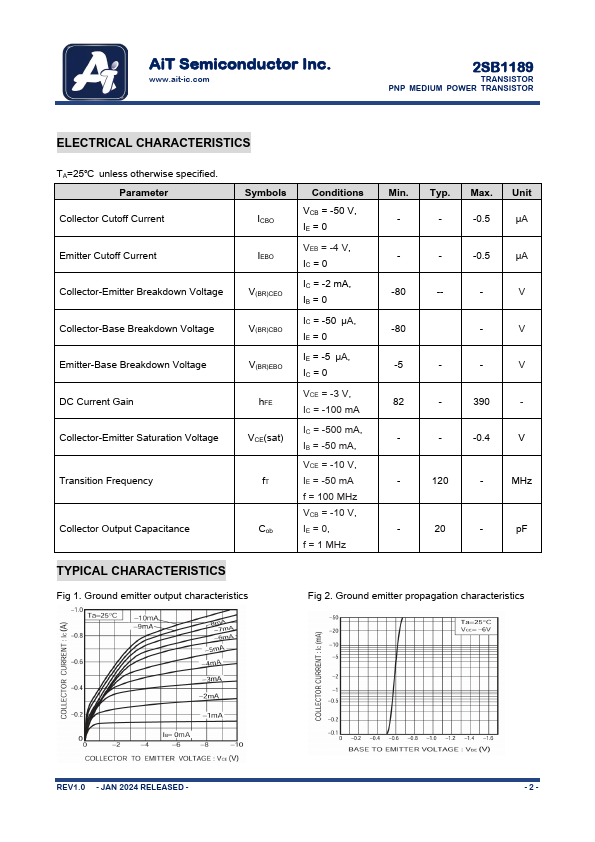

ELECTRICAL CHARACTERISTICS
TA=25℃ unless otherwise specified....
