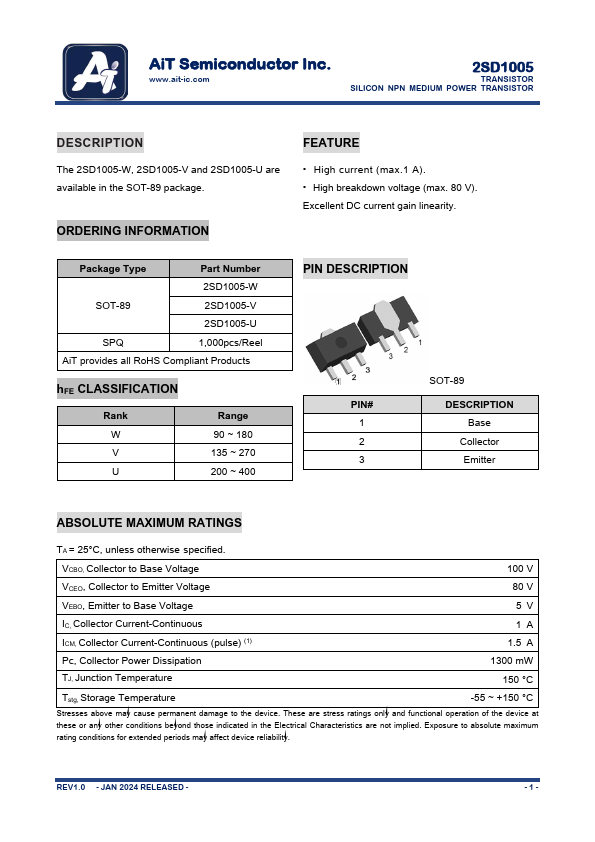

2SD1005
2SD1005 is SILICON NPN MEDIUM POWER TRANSISTOR manufactured by AiT Semiconductor.
DESCRIPTION
The 2SD1005-W, 2SD1005-V and 2SD1005-U are available in the SOT-89 package.
ORDERING INFORMATION
FEATURE
- High current (max.1 A).
- High breakdown voltage (max. 80 V). Excellent DC current gain linearity.
Package Type
Part Number
2SD1005-W
SOT-89
2SD1005-V
2SD1005-U
1,000pcs/Reel
Ai T provides all Ro HS pliant Products h FE CLASSIFICATION
Rank W V U
Range 90 ~ 180 135 ~ 270 200 ~ 400
PIN DESCRIPTION
PIN# 1 2 3
SOT-89
DESCRIPTION
Base
Collector Emitter
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified.
VCBO, Collector to Base Voltage
100 V
VCEO, Collector to Emitter Voltage
80 V
VEBO, Emitter to Base Voltage
5V
IC, Collector Current-Continuous
1A
ICM, Collector Current-Continuous (pulse) (1)
1.5 A
Pc, Collector Power Dissipation
1300 m W
TJ, Junction Temperature
150 °C
Tstg, Storage...
