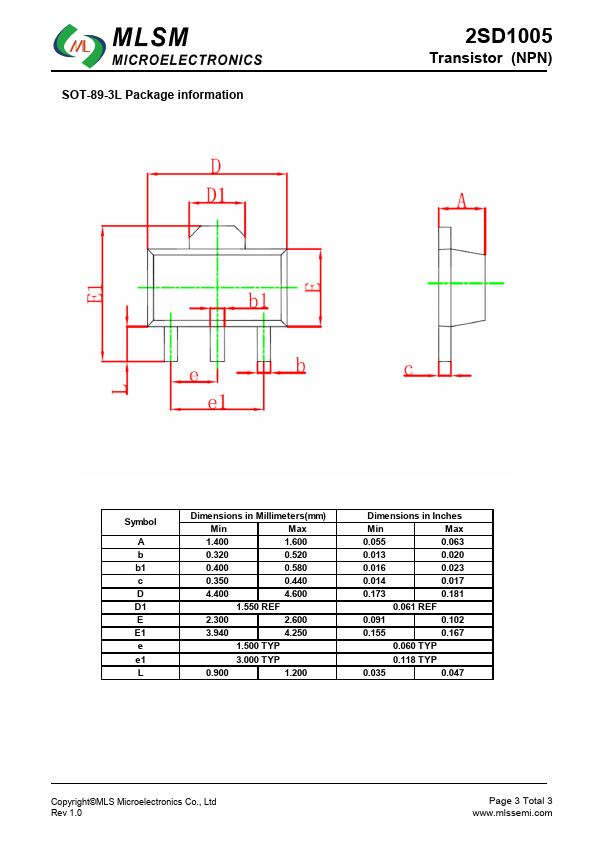

MLSM 2SD1005
NPN Transistor
| Part No. | 2SD1005 |
|---|---|
| Datasheet | 2SD1005 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |

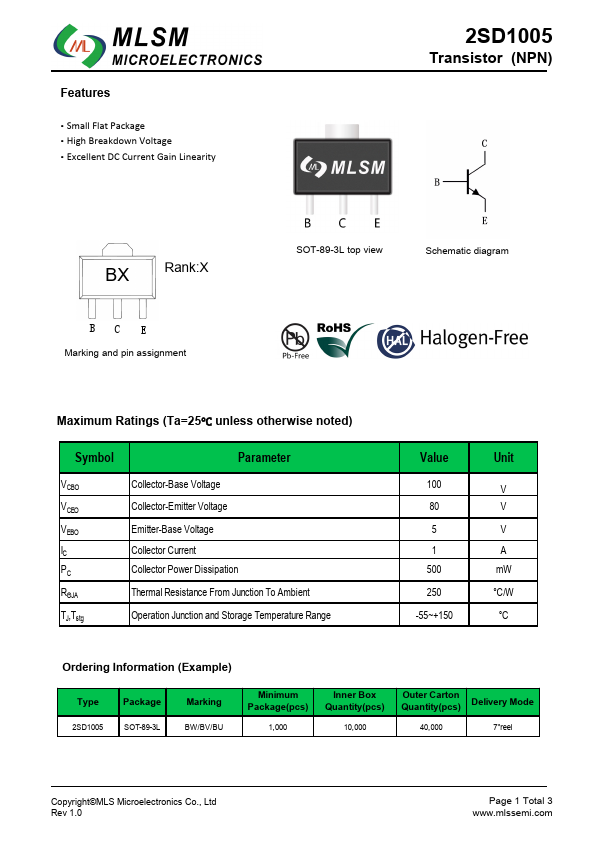

FEATURES
● Small Flat Package● High Breakdown Voltage
● Excellent DC Current Gain Linearity 2SD1005 Transistor (NPN) X:Rank BX Rank:X BC E Marking and pin assignment SOT-89-3L top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value Unit 100 V 80 V 5 V 1 A 500 mW 250 °C/W -55~+150 °C Ordering Information (Example) Type 2SD1005 Package SOT-89-3L Marking BW/BV/BU Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 3 2SD1005 Transistor (NPN)ELECTRICAL CHARACTERISTICS

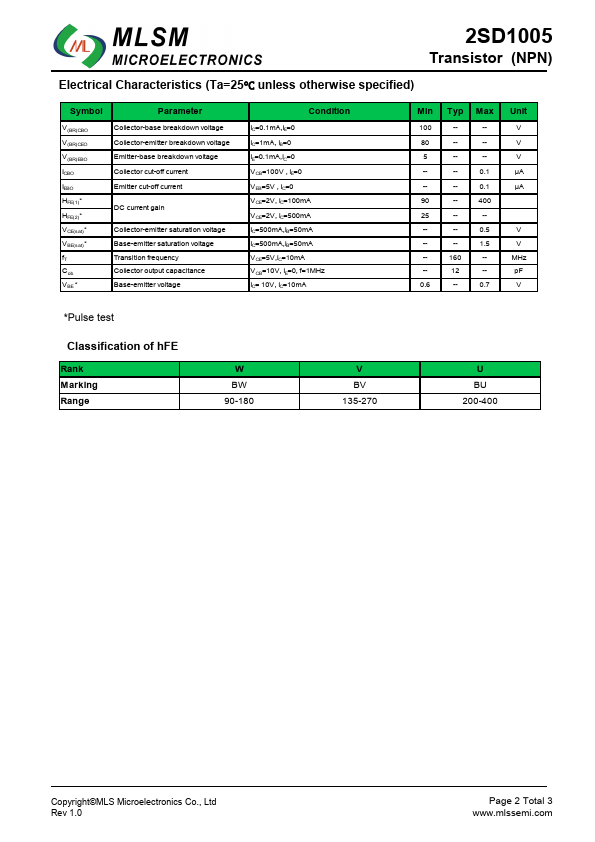

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE(1)* HFE(2)* VCE(sat)* VBE(sat...
