Datasheet Details
| Part number | MMBT2222W |
|---|---|
| Manufacturer | AiT Semiconductor |
| File Size | 916.14 KB |
| Description | NPN SILICON EPITAXIAL PLANAR TRANSISTOR |
| Datasheet | MMBT2222W-AiTSemiconductor.pdf |
|
|
Overview: AiT Semiconductor Inc. MMBT2222W_AW www.ait-ic.com TRANSISTOR NPN SILICON EPITAXIAL PLANAR.
| Part number | MMBT2222W |
|---|---|
| Manufacturer | AiT Semiconductor |
| File Size | 916.14 KB |
| Description | NPN SILICON EPITAXIAL PLANAR TRANSISTOR |
| Datasheet | MMBT2222W-AiTSemiconductor.pdf |
|
|
|

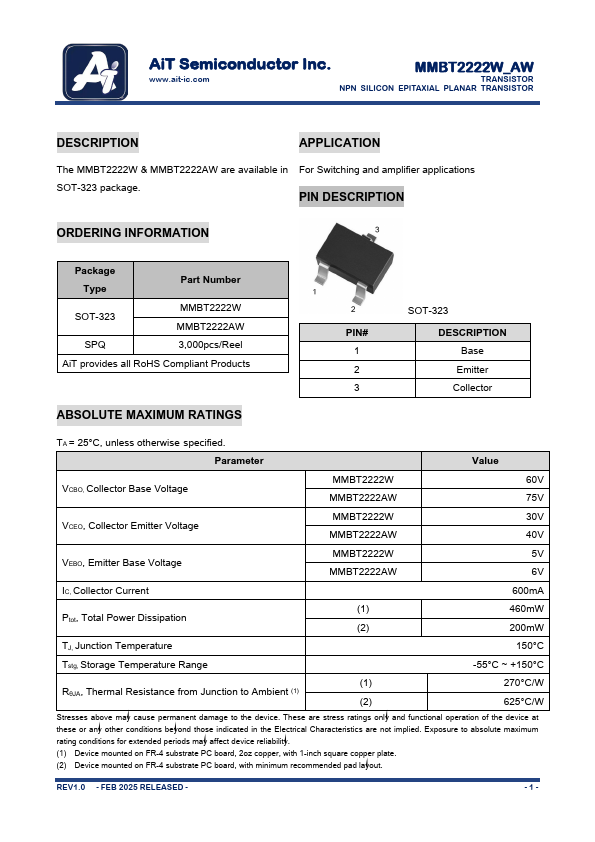

APPLICATION The MMBT2222W & MMBT2222AW are available in For Switching and amplifier applications SOT-323 package.
PIN DESCRIPTION ORDERING INFORMATION Package Type Part Number SOT-323 MMBT2222W MMBT2222AW SPQ 3,000pcs/Reel AiT provides all RoHS Compliant Products PIN# 1 2 3 SOT-323 DESCRIPTION Base Emitter Collector ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified.
VCBO, Collector Base Voltage Parameter MMBT2222W MMBT2222AW Value 60V 75V MMBT2222W 30V VCEO, Collector Emitter Voltage MMBT2222AW 40V VEBO, Emitter Base Voltage MMBT2222W 5V MMBT2222AW 6V IC, Collector Current Ptot, Total Power Dissipation 600mA (1) 460mW (2) 200mW TJ, Junction Temperature 150°C Tstg, Storage Temperature Range -55°C ~ +150°C (1) RθJA, Thermal Resistance from Junction to Ambient (1) (2) 270°C/W 625°C/W Stresses above may cause permanent damage to the device.
