F133MX-HXX
F133MX-HXX is The RISC-V Multi-Media Decoding Platform SoC manufactured by Allwinner.

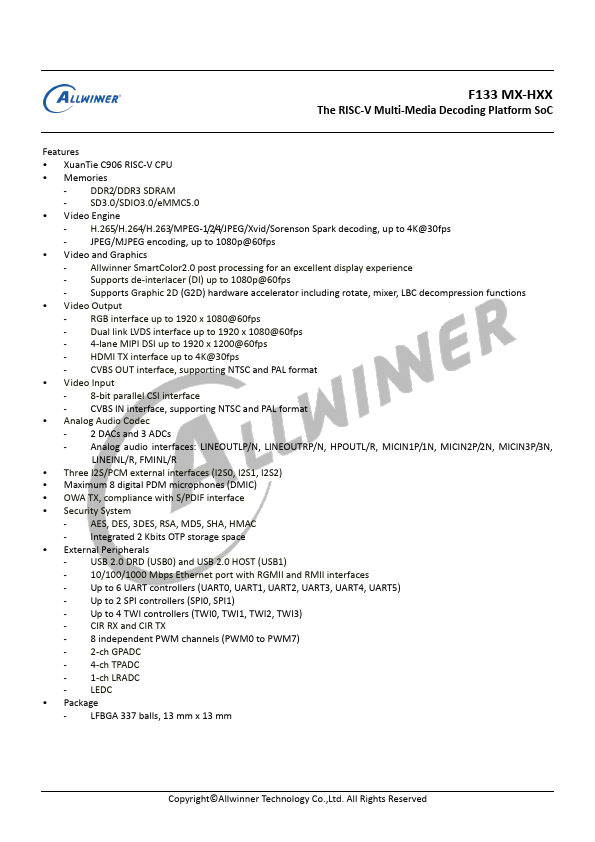

F133 MX-HXX
The RISC-V Multi-Media Decoding Platform So C
Features
- Xuan Tie C906 RISC-V CPU
- Memories
- DDR2/DDR3 SDRAM
- SD3.0/SDIO3.0/e MMC5.0
- Video Engine
- H.265/H.264/H.263/MPEG-1/2/4/JPEG/Xvid/Sorenson Spark decoding, up to 4K@30fps
- JPEG/MJPEG encoding, up to 1080p@60fps
- Video and Graphics
- Allwinner Smart Color2.0 post processing for an excellent display experience
- Supports de-interlacer (DI) up to 1080p@60fps
- Supports Graphic 2D (G2D) hardware accelerator including rotate, mixer, LBC depression functions
- Video Output
- RGB interface up to 1920 x 1080@60fps
- Dual link LVDS interface up to 1920 x 1080@60fps
- 4-lane MIPI DSI up to 1920 x 1200@60fps
- HDMI TX interface up to 4K@30fps
- CVBS OUT interface, supporting NTSC and PAL format
- Video Input
- 8-bit parallel CSI interface
- CVBS IN interface, supporting NTSC and PAL format
- Analog Audio Codec
- 2 DACs and 3 ADCs
- Analog audio interfaces: LINEOUTLP/N, LINEOUTRP/N, HPOUTL/R, MICIN1P/1N, MICIN2P/2N, MICIN3P/3N,
LINEINL/R, FMINL/R
- Three I2S/PCM external interfaces (I2S0, I2S1, I2S2)
- Maximum 8 digital PDM microphones (DMIC)
- OWA TX, pliance with S/PDIF...
