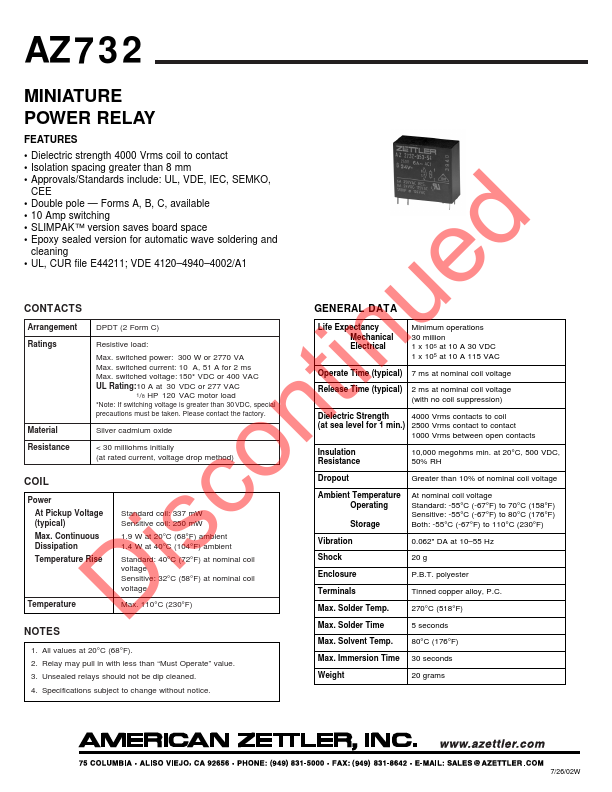

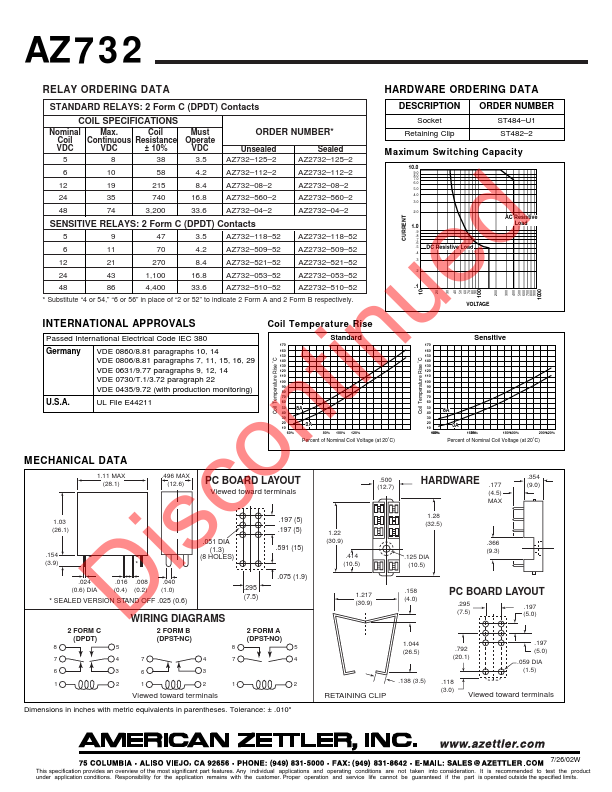

MINIATURE POWER RELAY Features - Dielectric strength 4000 Vrms coil to contact - Isolation spacing greater than 8 mm - Approvals/Standards include: UL, VDE, IEC, SEMKO, CEE - Double pole - Forms A, B, C, available - 10 Amp switching - SLIMPAK™ version saves board space - Epoxy sealed version for automatic wave soldering and d cleaning - UL, CUR file E44211; VDE 4120- 4940- 4002/A1 e CONTACTS u Arrangement Ratings tin Material n Resistance DPDT (2 Form C) Resistive load: Max. switched power: 300 W or 2770 VA Max. switched current: 10 A, 51 A for 2 ms Max. switched voltage: 150- VDC or 400 VAC UL Rating:10 A at 30 VDC or 277 VAC 1/8 HP 120 VAC motor load - Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Silver cadmium oxide < 30 milliohms initially (at rated current, voltage drop method) o COIL Power At Pickup Voltage c (typical) Max. Continuous Dissipation is Temperature Rise D Temperature Standard coil: 337 m W Sensitive coil: 250 m W 1.9 W at 20°C (68°F) ambient 1.4 W at 40°C (104°F) ambient Standard: 40°C (72°F) at nominal coil voltage Sensitive: 32°C (58°F) at nominal coil voltage Max. 110°C (230°F) GENERAL DATA Life Expectancy Mechanical Electrical Minimum operations 30 million 1 x 105 at 10 A 30 VDC 1 x 105 at 10 A 115 VAC Operate Time (typical) 7 ms at nominal coil...
