AZ733 - DPDT MINIATURE POWER RELAY

General Description

Socket ORDER NUMBER ST484 U1 DESCRIPTION Retainer ORDER NUMBER ST482

.295 (7.5) 0.015 (0.38) .08 (2.1) .05 DIA.

Key Features

  • Dielectric strength 5000 Vrms Low cost Epoxy sealed version available 10 Amp switching.
  • double pole contacts Isolation spacing greater than 8mm UL Class B insulation system UL, CUR file E44211 TÜV file R50129285.

📥 Download Datasheet

Datasheet Details

Part number AZ733
Manufacturer American Zettler
File Size 143.26 KB
Description DPDT MINIATURE POWER RELAY
Datasheet download datasheet AZ733 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ732 MINIATURE POWER RELAY ETC
AZ7023R VOLTAGE DETECTOR BCD Semiconductor
AZ7023Z VOLTAGE DETECTOR BCD Semiconductor
AZ7025R VOLTAGE DETECTOR BCD Semiconductor
AZ7025Z VOLTAGE DETECTOR BCD Semiconductor

Other Datasheets by American Zettler

Part Number Description
AZ7335 MINIATURE POWER RELAY
AZ733W DPST MINIATURE POWER RELAY
AZ733WC MINIATURE POWER RELAY
AZ732 MINIATURE POWER RELAY
AZ734 DPST MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

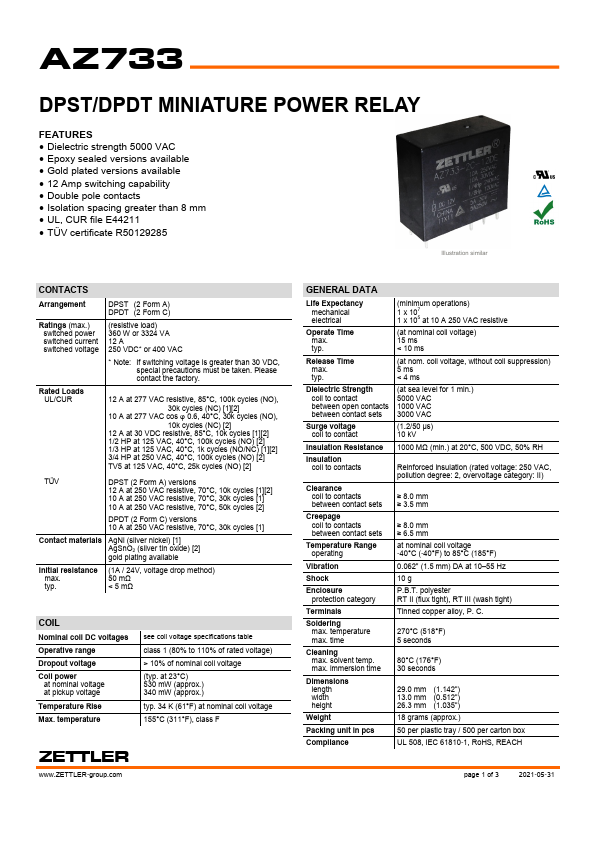

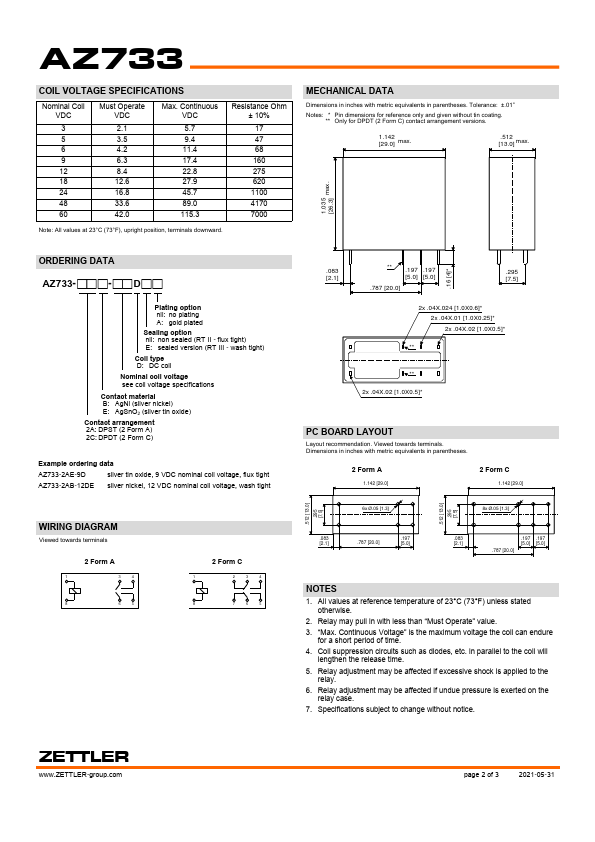

AZ733 www.DataSheet4U.com DPDT MINIATURE POWER RELAY FEATURES • • • • • • • • Dielectric strength 5000 Vrms Low cost Epoxy sealed version available 10 Amp switching — double pole contacts Isolation spacing greater than 8mm UL Class B insulation system UL, CUR file E44211 TÜV file R50129285 CONTACTS Arrangement Ratings DPST (2 Form A) DPDT (2 Form C) Resistive load: Max. switched power: 300 W or 2500 VA Max. switched current: 10 A Max. switched voltage: 150* VDC or 380 VAC *Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (typical) Release Time (typical) Minimum operations 1 x 107 1 x 105 at 10 A 240 VAC Res.
