AZ733W - DPST MINIATURE POWER RELAY

General Description

Socket ORDER NUMBER ST484 U1 DESCRIPTION Retainer ORDER NUMBER ST482

.08 (2.1) .05 DIA.

Terminal No.

Key Features

  • Dielectric strength 5000 Vrms 1.5 mm contact gap Epoxy sealed version available 10 Amp switching.
  • double pole contacts Isolation spacing greater than 8 mm UL Class B insulation system UL, CUR file E44211 TÜV file R50129285.

📥 Download Datasheet

Datasheet Details

Part number AZ733W
Manufacturer American Zettler
File Size 159.00 KB
Description DPST MINIATURE POWER RELAY
Datasheet download datasheet AZ733W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ732 MINIATURE POWER RELAY ETC
AZ7023R VOLTAGE DETECTOR BCD Semiconductor
AZ7023Z VOLTAGE DETECTOR BCD Semiconductor
AZ7025R VOLTAGE DETECTOR BCD Semiconductor
AZ7025Z VOLTAGE DETECTOR BCD Semiconductor

Other Datasheets by American Zettler

Part Number Description
AZ733WC MINIATURE POWER RELAY
AZ733 DPDT MINIATURE POWER RELAY
AZ7335 MINIATURE POWER RELAY
AZ732 MINIATURE POWER RELAY
AZ734 DPST MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

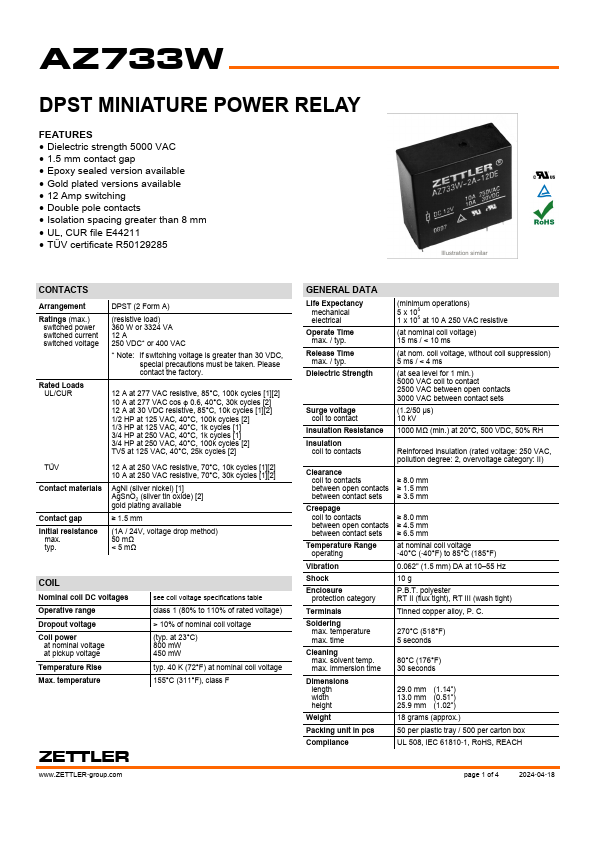

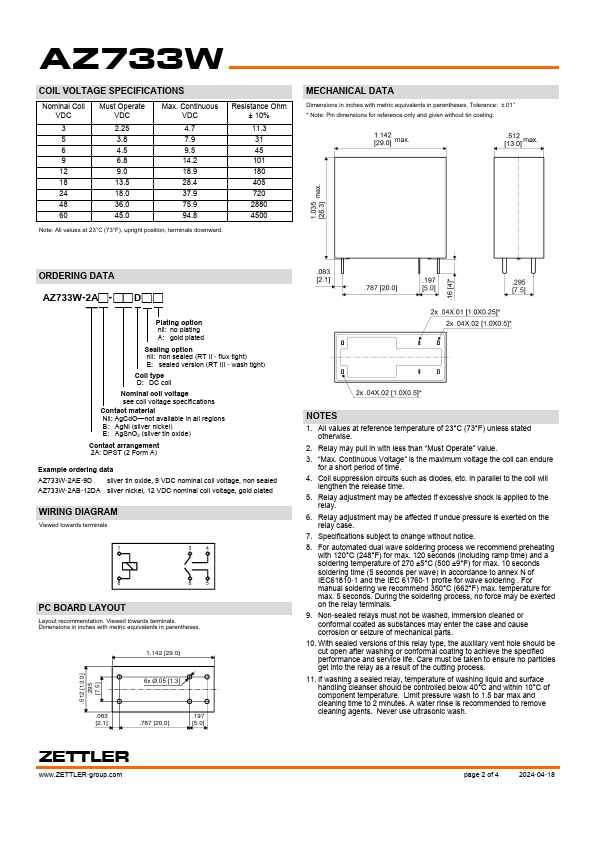

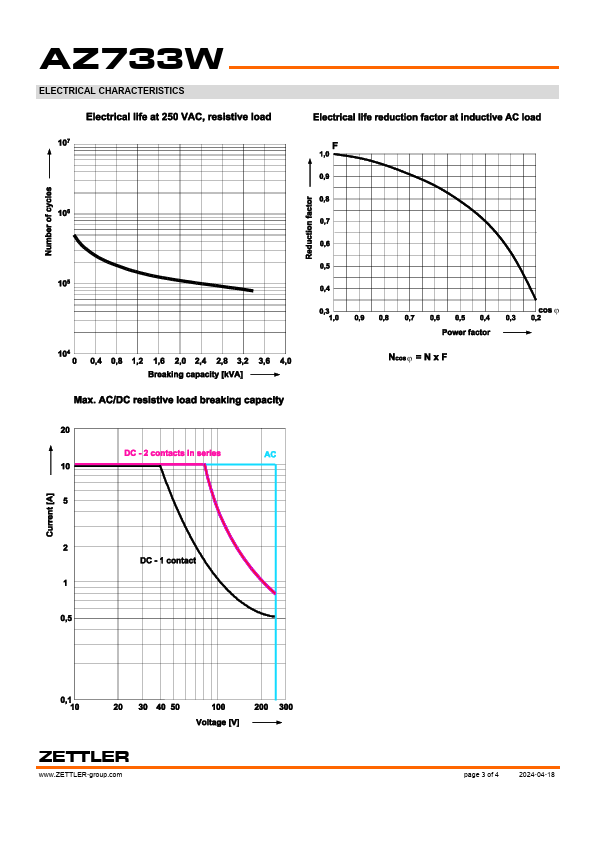

AZ733W AZ www.DataSheet4U.com DPST MINIATURE POWER RELAY FEATURES • • • • • • • • Dielectric strength 5000 Vrms 1.5 mm contact gap Epoxy sealed version available 10 Amp switching — double pole contacts Isolation spacing greater than 8 mm UL Class B insulation system UL, CUR file E44211 TÜV file R50129285 CONTACTS Arrangement Ratings DPST (2 Form A) Resistive load: Max. switched power: 300 W or 2500 VA Max. switched current: 10 A Max. switched voltage: 150 VDC* or 400 VAC *Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. GENERAL DATA Life Expectancy Mechanical Electrical Minimum operations 5 x 105 1 x 105 at 10 A 240 VAC Res.
