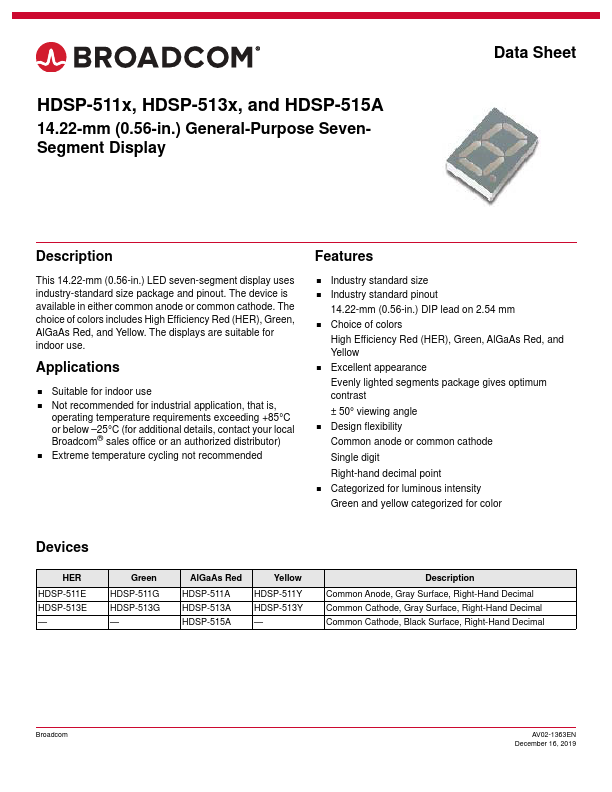

Broadcom HDSP-511A
This 14.22-mm (0.56-in.) LED seven-segment display uses industry-standard size package and pinout. The device is available in either common anode or common cathode.| Part No. | HDSP-511A |
|---|---|
| Datasheet | HDSP-511A Download |
| Manufacturer |  Broadcom |
| Description | General-Purpose SevenSegment Display |
| Buy | Stock & Price |
DESCRIPTION
The choice of colors includes High Efficiency Red (HER), Green, AlGaAs Red, and Yellow. The displays are suitable for indoor use.APPLICATIONS
● Suitable for indoor use● Not recommended for industrial application, that is, operating temperature requirements exceeding +85°C or below –25°C (for additional details, contact your local Broadcom® sales office or an authorized distributor)
● Extreme temperature cycling not recommended
FEATURES

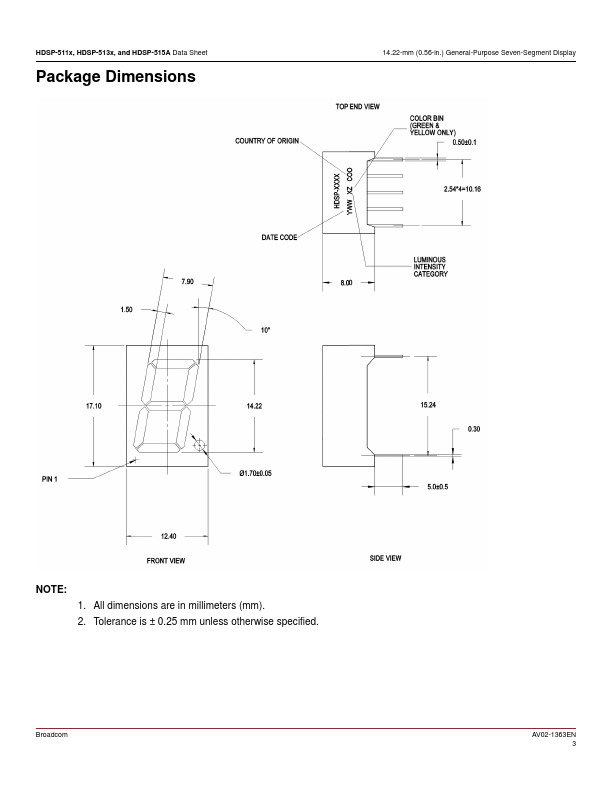

● Industry standard size● Industry standard pinout 14.22-mm (0.56-in.) DIP lead on 2.54 mm
● Choice of colors High Efficiency Red (HER), Green, AlGaAs Red, and Yellow
● Excellent appearance Evenly lighted segments package gives optimum contrast ± 50° viewing angle
● Design flexibility Common anode or common cathode Single digit Right-hand decimal point
● Categorized for luminous intensity Green and yellow categorized for color Devices HER HDSP-511E HDSP-513E — Green HDSP-511G HDSP-513G — AlGaAs Red HDSP-511A HDSP-513A HDSP-515A Yellow HDSP...
