PCM1700P - dual 18-bit digital-to-analog converter

This page provides the datasheet information for the PCM1700P, a member of the PCM1700U dual 18-bit digital-to-analog converter family.

Description

The PCM1700 is a low cost, high-performance, dual 18-bit digital-to-analog converter.

Features

  • q DUAL 18-BIT LOW-POWER.

📥 Download Datasheet

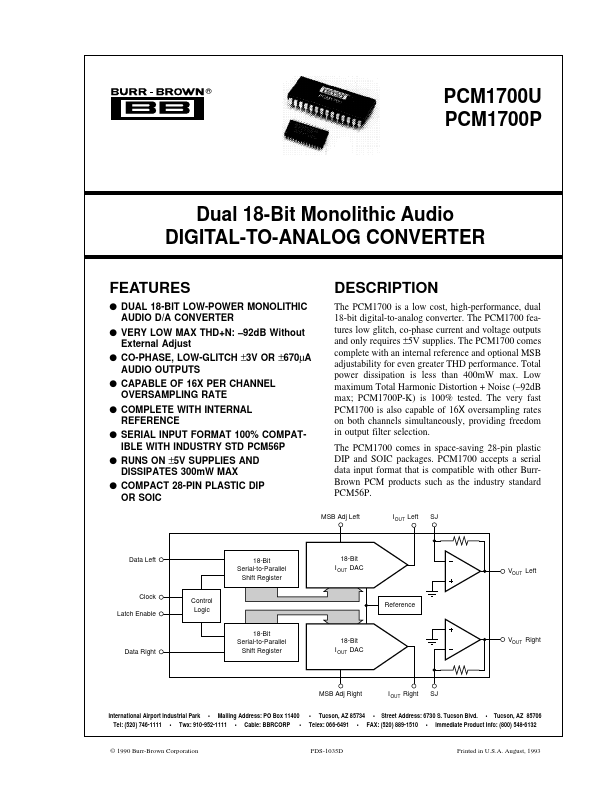

Datasheet preview – PCM1700P

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1704 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1715U - DIGITAL-TO-ANALOG CONVERTER
  • PCM1716 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text

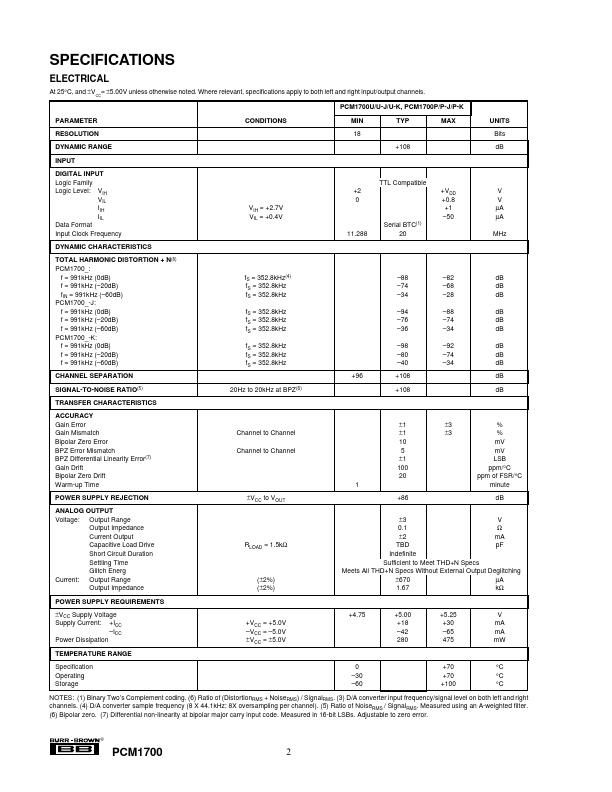

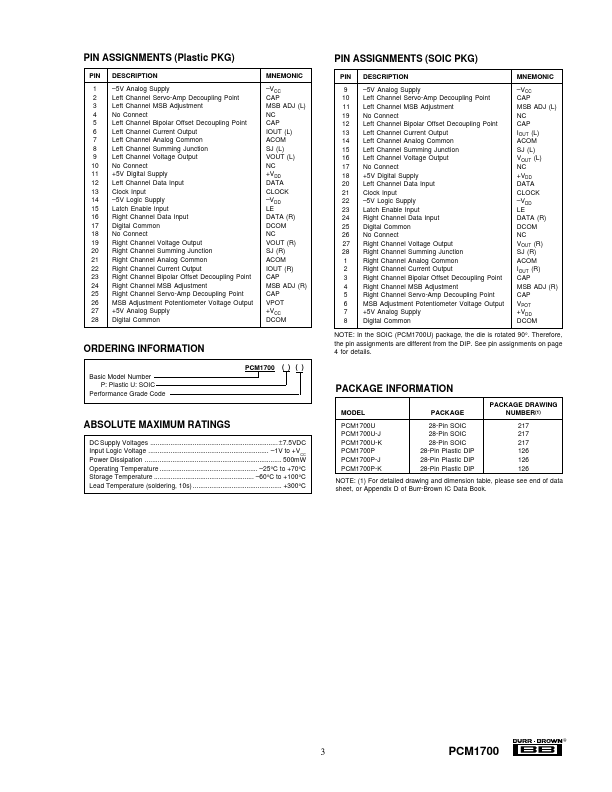

® PCM1700U PCM1700P Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER FEATURES q DUAL 18-BIT LOW-POWER MONOLITHIC AUDIO D/A CONVERTER q VERY LOW MAX THD+N: –92dB Without External Adjust q CO-PHASE, LOW-GLITCH ±3V OR ±670µA AUDIO OUTPUTS q CAPABLE OF 16X PER CHANNEL OVERSAMPLING RATE q COMPLETE WITH INTERNAL REFERENCE q SERIAL INPUT FORMAT 100% COMPATIBLE WITH INDUSTRY STD PCM56P q RUNS ON ±5V SUPPLIES AND DISSIPATES 300mW MAX q COMPACT 28-PIN PLASTIC DIP OR SOIC DESCRIPTION The PCM1700 is a low cost, high-performance, dual 18-bit digital-to-analog converter. The PCM1700 features low glitch, co-phase current and voltage outputs and only requires ±5V supplies. The PCM1700 comes complete with an internal reference and optional MSB adjustability for even greater THD performance.
