PCM1704 - DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1704 is a precision, 24-bit digital-to-analog converter with exceptionally high dynamic performance.

The ultra-low distortion and excellent lowlevel signal performance makes the PCM1704 an ideal candidate for high-end consumer and professional audio applications.

Features

  • q.

📥 Download Datasheet

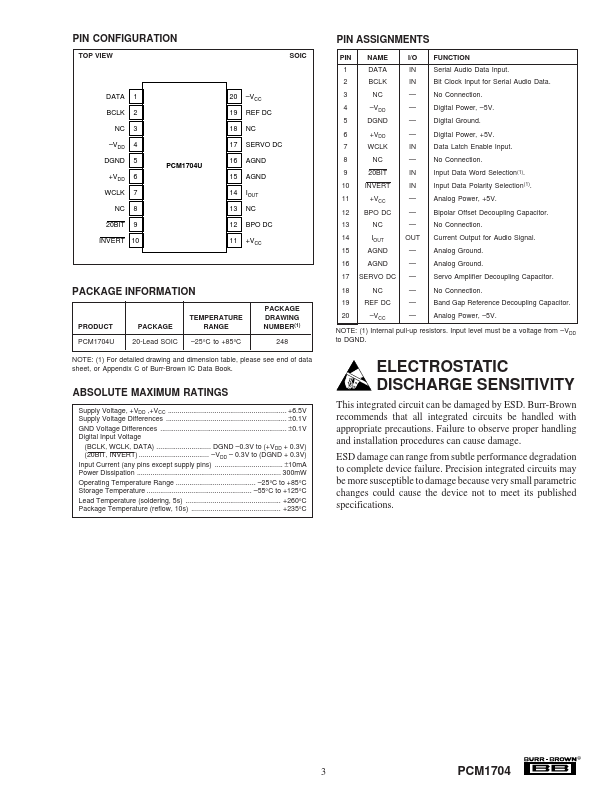

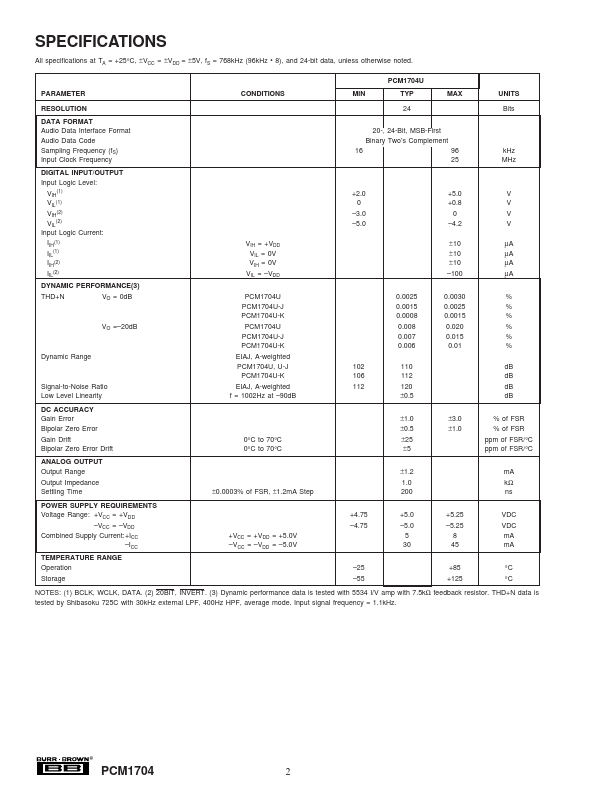

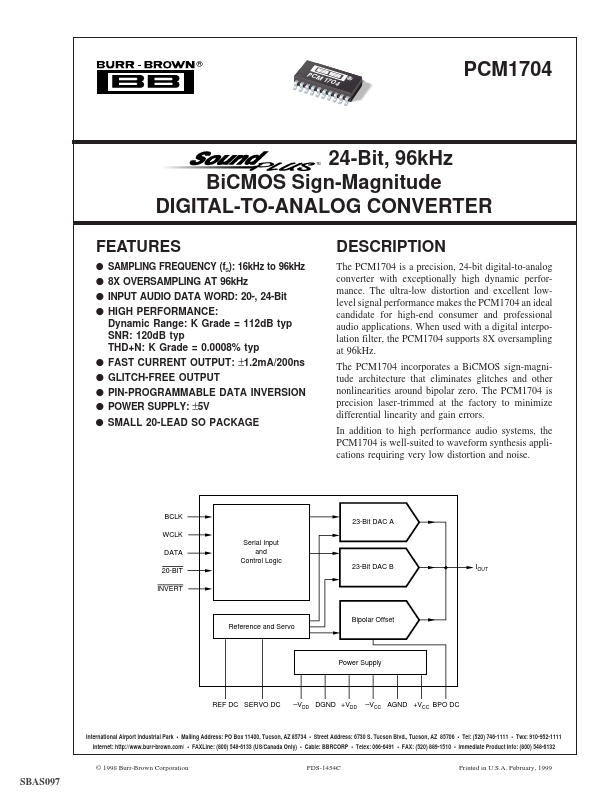

Datasheet preview – PCM1704

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1715U - DIGITAL-TO-ANALOG CONVERTER
  • PCM1716 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
® 49% PCM1704 FPO PCM1704 TM 24-Bit, 96kHz BiCMOS Sign-Magnitude DIGITAL-TO-ANALOG CONVERTER FEATURES q SAMPLING FREQUENCY (fS): 16kHz to 96kHz q 8X OVERSAMPLING AT 96kHz q INPUT AUDIO DATA WORD: 20-, 24-Bit q HIGH PERFORMANCE: Dynamic Range: K Grade = 112dB typ SNR: 120dB typ THD+N: K Grade = 0.0008% typ q FAST CURRENT OUTPUT: ±1.2mA/200ns q GLITCH-FREE OUTPUT q PIN-PROGRAMMABLE DATA INVERSION q POWER SUPPLY: ±5V q SMALL 20-LEAD SO PACKAGE DESCRIPTION The PCM1704 is a precision, 24-bit digital-to-analog converter with exceptionally high dynamic performance. The ultra-low distortion and excellent lowlevel signal performance makes the PCM1704 an ideal candidate for high-end consumer and professional audio applications.
