PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the PCM1702U, a member of the PCM1702P 20-Bit DIGITAL-TO-ANALOG CONVERTER family.

Description

The PCM1702 is a precision 20-bit digital-to-analog converter with ultra-low distortion (

96dB typ with a full scale output).

Incorporated into the PCM1702 is an advanced sign magnitude architecture that eliminates unwanted glitches and other nonlinearities around bipolar zero.

Features

  • q ULTRA LOW.
  • 96dB max THD+N (No External Adjustment Required) q NEAR-IDEAL LOW LEVEL.

📥 Download Datasheet

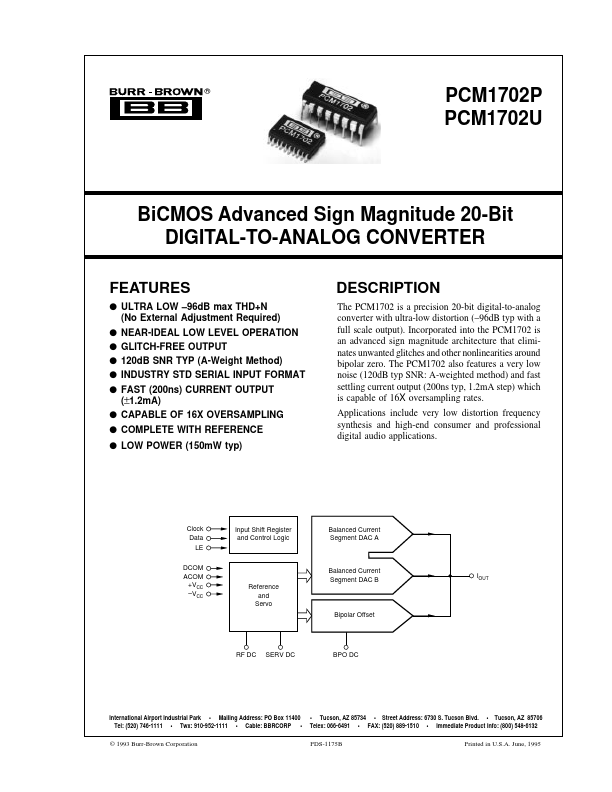

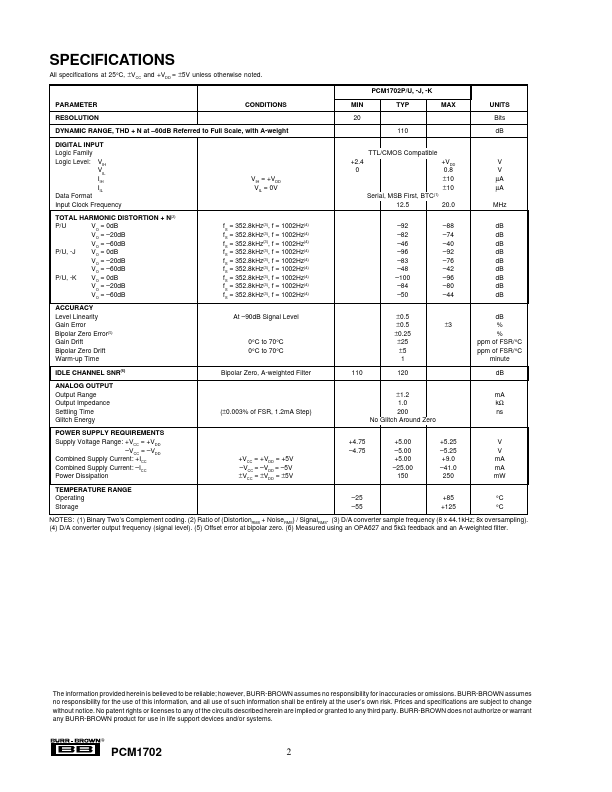

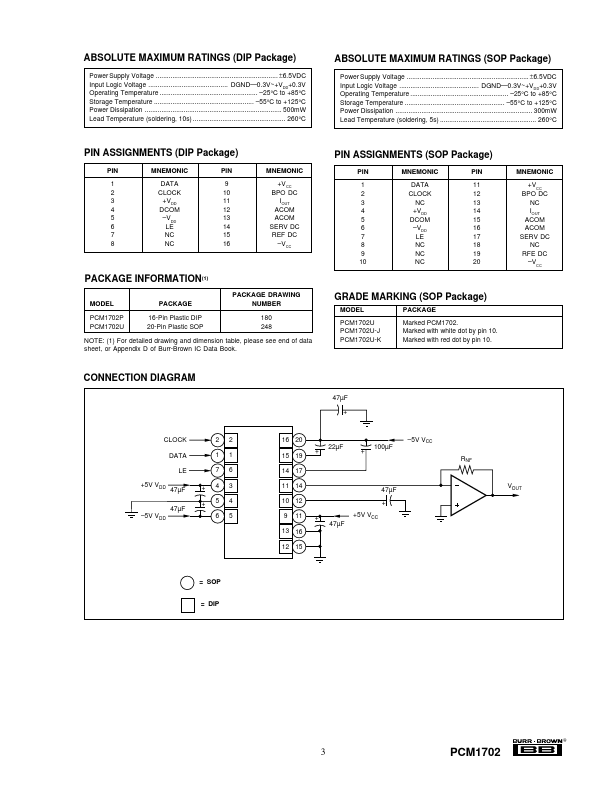

Datasheet preview – PCM1702U
