The PCM1702 is a precision 20-bit digital-to-analog converter with ultra-low distortion (
96dB typ with a full scale output).
Incorporated into the PCM1702 is an advanced sign magnitude architecture that eliminates unwanted glitches and other nonlinearities around bipolar zero.
Key Features
q ULTRA LOW.
96dB max THD+N (No External Adjustment Required)
q NEAR-IDEAL LOW LEVEL.
Full PDF Text Transcription for PCM1702P (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
PCM1702P. For precise diagrams, and layout, please refer to the original PDF.

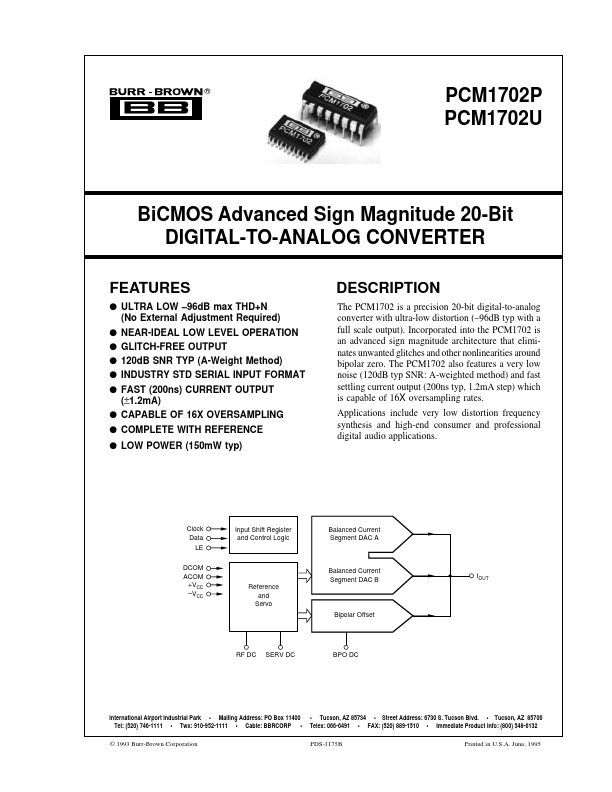

® 49% FPO PCM1702P PCM1702U BiCMOS Advanced Sign Magnitude 20-Bit DIGITAL-TO-ANALOG CONVERTER FEATURES q ULTRA LOW –96dB max THD+N (No External Adjustment Required) q NEA...
View more extracted text
ES q ULTRA LOW –96dB max THD+N (No External Adjustment Required) q NEAR-IDEAL LOW LEVEL OPERATION q GLITCH-FREE OUTPUT q 120dB SNR TYP (A-Weight Method) q INDUSTRY STD SERIAL INPUT FORMAT q FAST (200ns) CURRENT OUTPUT (±1.2mA) q CAPABLE OF 16X OVERSAMPLING q COMPLETE WITH REFERENCE q LOW POWER (150mW typ) DESCRIPTION The PCM1702 is a precision 20-bit digital-to-analog converter with ultra-low distortion (–96dB typ with a full scale output). Incorporated into the PCM1702 is an advanced sign magnitude architecture that eliminates unwanted glitches and other nonlinearities around bipolar zero.
