PCM1720 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1720 is a complete low cost stereo audio digital-to-analog converter (DAC), operating off of a 256fS or 384fS system clock.

The DAC contains a 3rdorder ∆Σ modulator, a digital interpolation filter, and an analog output amplifier.

Features

  • q.

📥 Download Datasheet

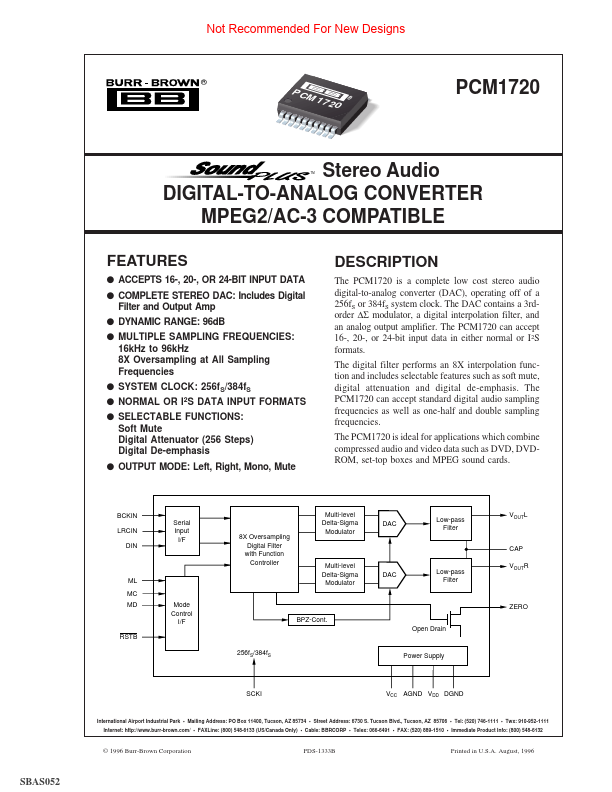

Datasheet preview – PCM1720

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1721 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1723 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1725 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1727 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1728 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER

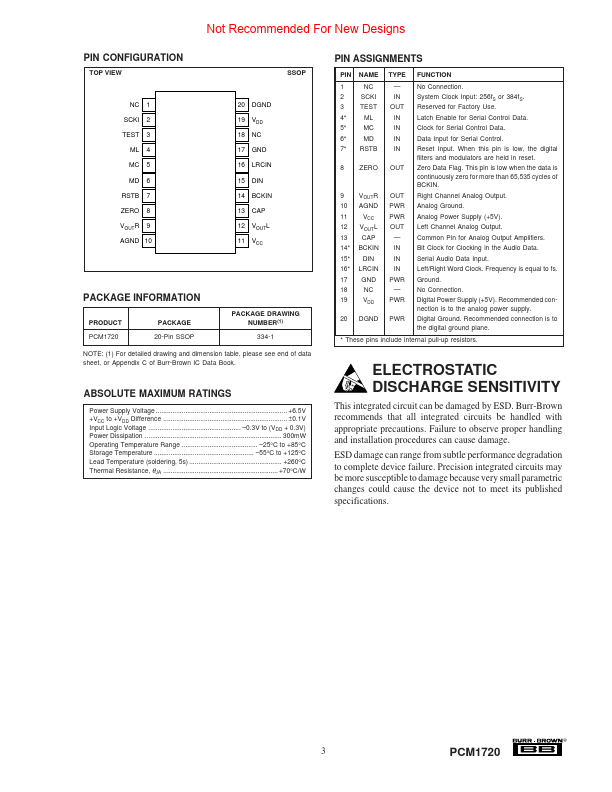

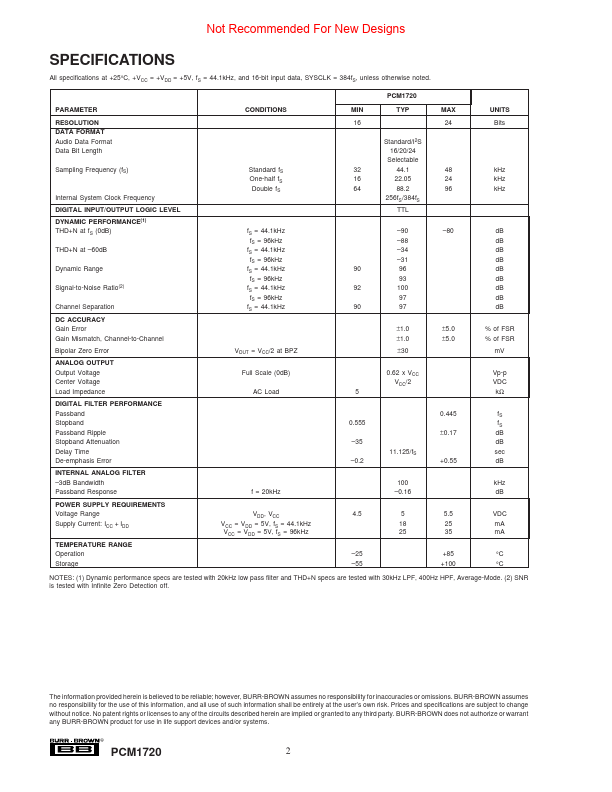

Full PDF Text Transcription

Click to expand full text
Not Recommended For New Designs ® 49% PCMF1P7O20 ® PCM1720 TM Stereo Audio DIGITAL-TO-ANALOG CONVERTER MPEG2/AC-3 COMPATIBLE FEATURES q ACCEPTS 16-, 20-, OR 24-BIT INPUT DATA q COMPLETE STEREO DAC: Includes Digital Filter and Output Amp q DYNAMIC RANGE: 96dB q MULTIPLE SAMPLING FREQUENCIES: 16kHz to 96kHz 8X Oversampling at All Sampling Frequencies q SYSTEM CLOCK: 256fS/384fS q NORMAL OR I2S DATA INPUT FORMATS q SELECTABLE FUNCTIONS: Soft Mute Digital Attenuator (256 Steps) Digital De-emphasis q OUTPUT MODE: Left, Right, Mono, Mute DESCRIPTION The PCM1720 is a complete low cost stereo audio digital-to-analog converter (DAC), operating off of a 256fS or 384fS system clock. The DAC contains a 3rdorder ∆Σ modulator, a digital interpolation filter, and an analog output amplifier.
