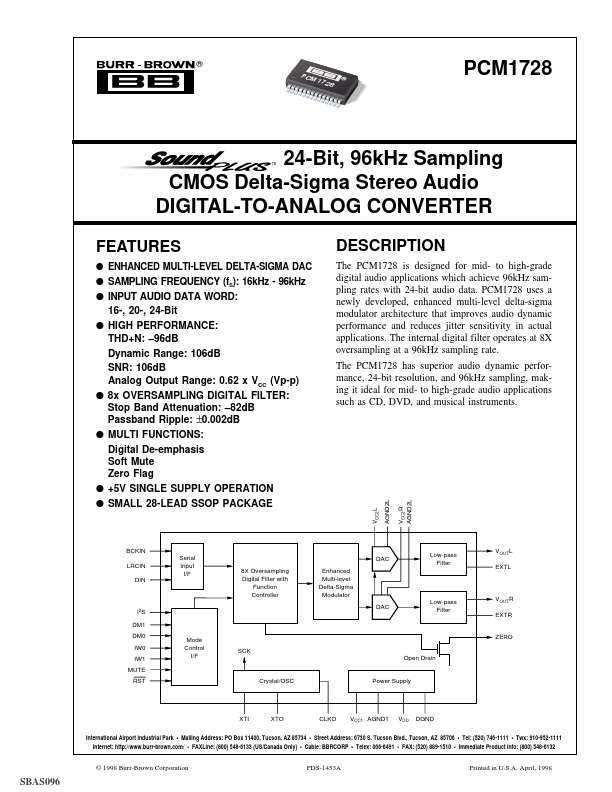

PCM1728
TM 24-Bit, 96kHz Sampling CMOS Delta-Sigma Stereo Audio DIGITAL-TO-ANALOG CONVERTER
FEATURES
q ENHANCED MULTI-LEVEL DELTA-SIGMA DAC q SAMPLING FREQUENCY (fS): 16kHz - 96kHz q INPUT AUDIO DATA WORD:
16-, 20-, 24-Bit q HIGH PERFORMANCE:
THD+N: –96dB Dynamic Range: 106dB SNR: 106dB Analog Output Range: 0.62 x VCC (Vp-p) q 8x OVERSAMPLING DIGITAL FILTER: Stop Band Attenuation: –82dB Passband Ripple: ±0.002dB q MULTI FUNCTIONS: Digital De-emphasis Soft Mute Zero Flag q +5V SINGLE SUPPLY OPERATION q SMALL 28-LEAD SSOP PACKAGE
DESCRIPTION
The PCM1728 is designed for mid- to high-grade digital audio applications which achieve 96kHz sampling rates with 24-bit audio data.
