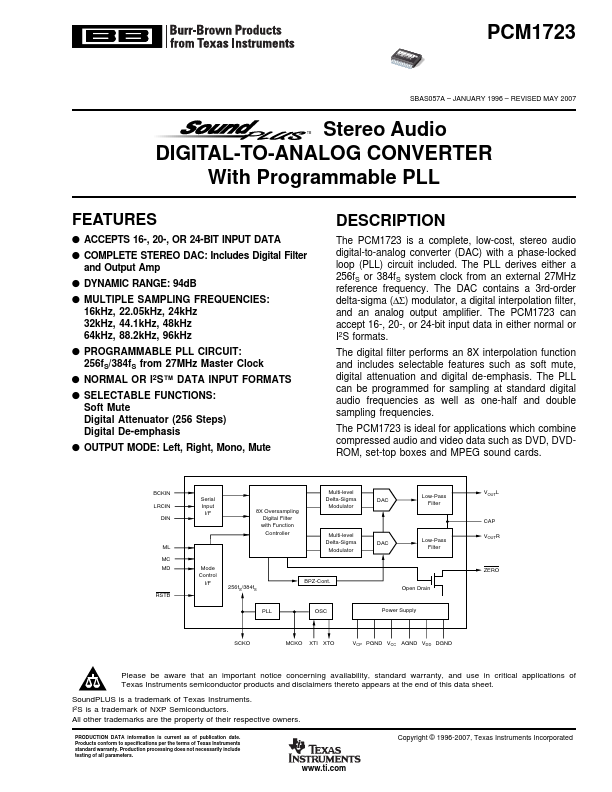

PCM1723 datasheet by Burr-Brown (Texas Instruments).
| Part number | PCM1723 |
|---|---|
| Datasheet | PCM1723-BurrBrown.pdf |
| File Size | 420.20 KB |
| Manufacturer | Burr-Brown (Texas Instruments) |
| Description | Stereo Audio DIGITAL-TO-ANALOG CONVERTER |
|
|
The PCM1723 is a plete, low-cost, stereo audio digital-to-analog converter (DAC) with a phase-locked loop (PLL) circuit included. The PLL derives either a 256fS or 384fS system clock from an external 27MHz reference frequency. The DAC contains a 3rd-order delta-sigma (∆Σ) modulator, a digital interpolation filter, and an analog output amplifier.
