PCM1725 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1725 is a complete low cost stereo audio digital-to-analog converter (DAC), operating off of a 256fS or 384fS system clock.

The DAC contains a 3rdorder ∆Σ modulator, a digital interpolation filter, and an analog output amplifier.

Features

  • q.

📥 Download Datasheet

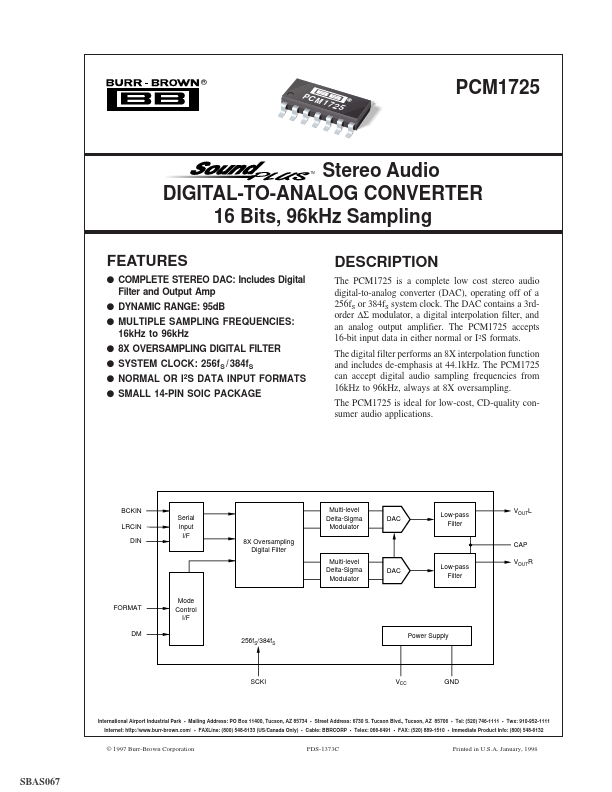

Datasheet preview – PCM1725

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1720 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1721 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1723 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1727 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1728 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
® PCM1725 PCM1725 TM Stereo Audio DIGITAL-TO-ANALOG CONVERTER 16 Bits, 96kHz Sampling FEATURES q COMPLETE STEREO DAC: Includes Digital Filter and Output Amp q DYNAMIC RANGE: 95dB q MULTIPLE SAMPLING FREQUENCIES: 16kHz to 96kHz q 8X OVERSAMPLING DIGITAL FILTER q SYSTEM CLOCK: 256fS / 384fS q NORMAL OR I2S DATA INPUT FORMATS q SMALL 14-PIN SOIC PACKAGE DESCRIPTION The PCM1725 is a complete low cost stereo audio digital-to-analog converter (DAC), operating off of a 256fS or 384fS system clock. The DAC contains a 3rdorder ∆Σ modulator, a digital interpolation filter, and an analog output amplifier. The PCM1725 accepts 16-bit input data in either normal or I2S formats. The digital filter performs an 8X interpolation function and includes de-emphasis at 44.1kHz.
