PCM1760U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Download the PCM1760U datasheet PDF (PCM1760P included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 20-bit digital-to-analog converter.

Description

The PCM1760 and DF1760 combine for a low-cost, high-performance dual 20-bit, 48kHz sampling analog-to-digital conversion system which is specifically designed for dynamic applications.

The PCM1760/DF1760 pair form a 4-bit, 4th order, 64X oversampling analog-to-digital converter.

Features

  • q DUAL 20-BIT.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PCM1760P-BurrBrown.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1760P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1704 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text

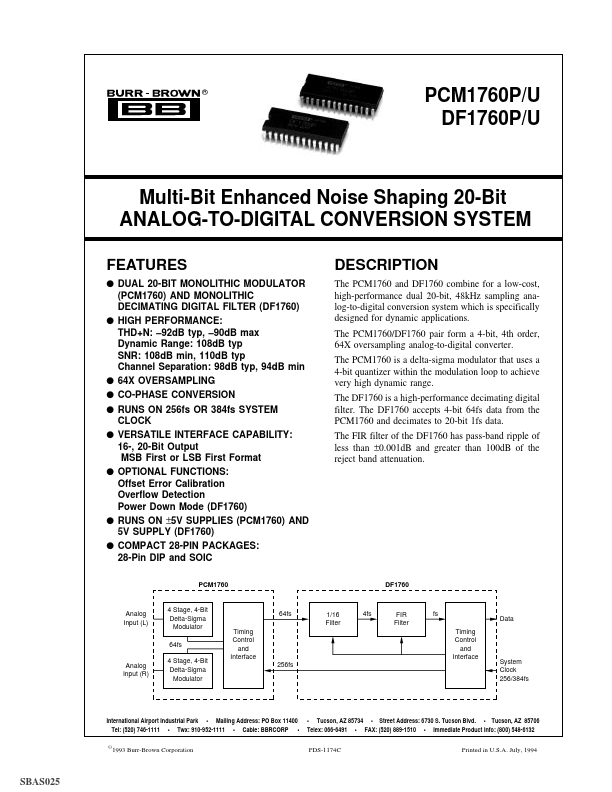

® PCM1760P/U DF1760P/U SBAS025 Multi-Bit Enhanced Noise Shaping 20-Bit ANALOG-TO-DIGITAL CONVERSION SYSTEM FEATURES q DUAL 20-BIT MONOLITHIC MODULATOR (PCM1760) AND MONOLITHIC DECIMATING DIGITAL FILTER (DF1760) q HIGH PERFORMANCE: THD+N: –92dB typ, –90dB max Dynamic Range: 108dB typ SNR: 108dB min, 110dB typ Channel Separation: 98dB typ, 94dB min q 64X OVERSAMPLING q CO-PHASE CONVERSION q RUNS ON 256fs OR 384fs SYSTEM CLOCK q VERSATILE INTERFACE CAPABILITY: 16-, 20-Bit Output MSB First or LSB First Format q OPTIONAL FUNCTIONS: Offset Error Calibration Overflow Detection Power Down Mode (DF1760) q RUNS ON ±5V SUPPLIES (PCM1760) AND 5V SUPPLY (DF1760) q COMPACT 28-PIN PACKAGES: 28-Pin DIP and SOIC DESCRIPTION The PCM1760 and DF1760 combine for a low-cost, high-performance dual 20-bit,
