KMOC3043H - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

This page provides the datasheet information for the KMOC3043H, a member of the KMOC3043 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER family.

Datasheet Summary

Description

The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver.

Features

  • 1. Pb free and RoHS compliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • CQC Approved: GB8898-2011, GB4943.1-2011 z.

📥 Download Datasheet

Datasheet preview – KMOC3043H

Datasheet Details

Part number KMOC3043H
Manufacturer COSMO Electronics
File Size 248.07 KB
Description 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KMOC3043H Datasheet

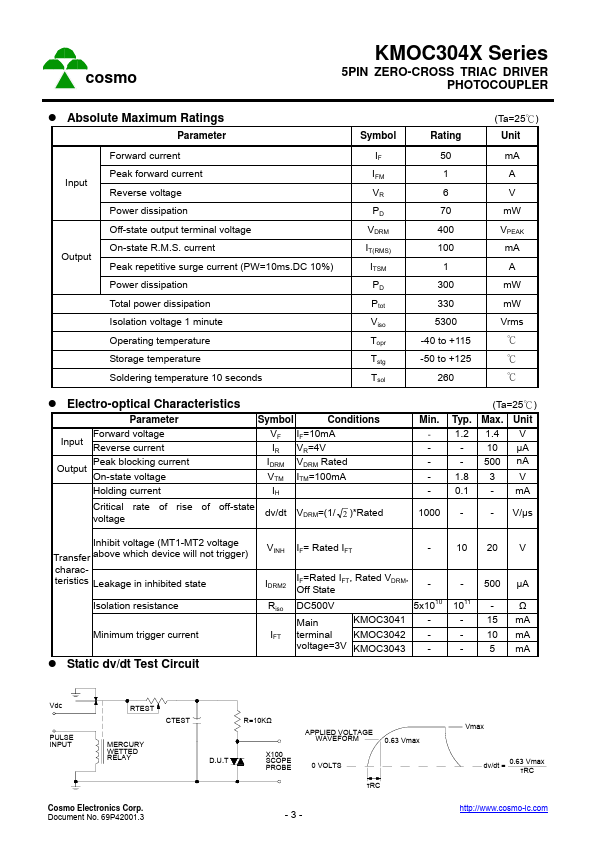

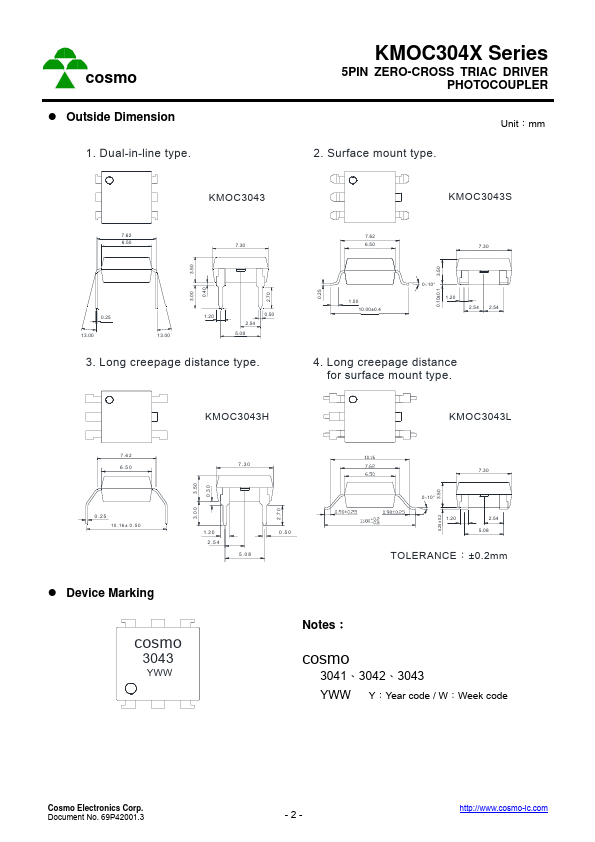

Additional preview pages of the KMOC3043H datasheet.

📁 Similar Datasheet

  • KMOC3041-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3042-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011 - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011H - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011L - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011S - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012 - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012H - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012L - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012S - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
Other Datasheets by COSMO Electronics
  • KMOC3043 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3043L - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3043S - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3041 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3042 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3021 - Optoisolators Triac Driver Output
  • KMOC3022 - OPTOISOLATORS TRIAC DRIVER OUTPUT
  • KMOC3023 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

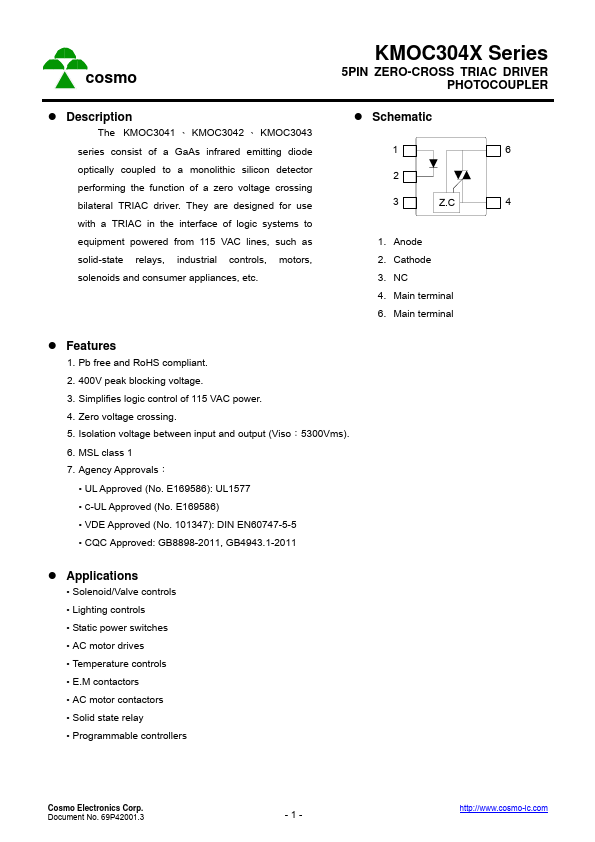

cosmo z Description The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc. KMOC304X Series 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER z Schematic 1 6 2 3 Z.C 4 1. Anode 2. Cathode 3. NC 4. Main terminal 6. Main terminal z Features 1. Pb free and RoHS compliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms).
