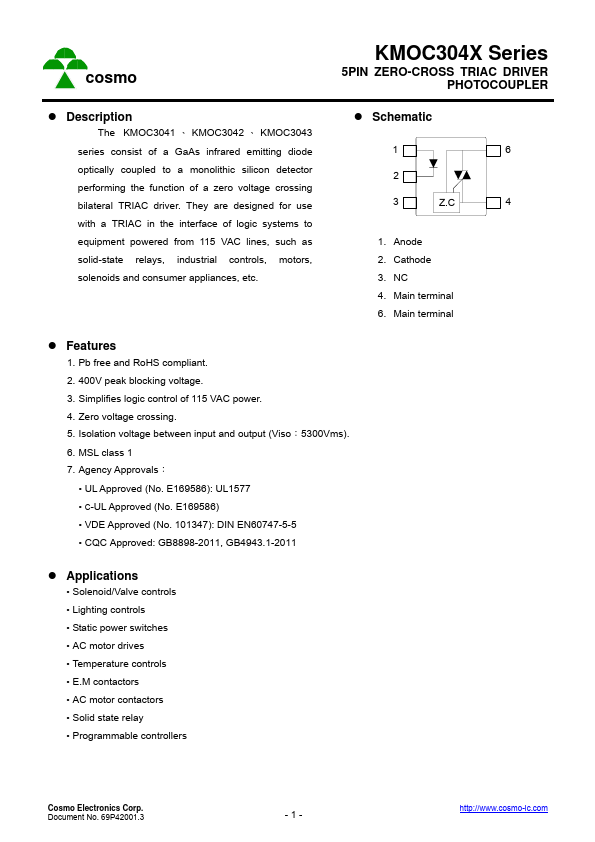

KMOC3043
Description
The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a Ga As infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.
KMOC304X Series
5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER z Schematic
Z.C
1. Anode 2. Cathode 3. NC 4. Main terminal 6. Main terminal z Features
1. Pb free and Ro HS pliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：
- UL Approved (No. E169586): UL1577
- C-UL Approved (No. E169586)
- VDE Approved (No. 101347): DIN EN60747-5-5
- CQC Approved: GB8898-2011, GB4943.1-2011 z Applications
-...
