KMOC3041-P Datasheet PDF (6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER)

KMOC3041-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Description

The KMOC3041-P、KMOC3042-P、

voltage crossing bilateral TRIAC driver.

Features

Pb free and RoHS compliant. 6. Main terminal 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approved (No. 101347): DIN EN60747-5-5.
CQC Approved: GB4943.1-2022.

Datasheet Details

Part number	KMOC3041-P
Manufacturer	Cosmo
File Size	409.67 KB
Description	6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet	KMOC3041-P Datasheet

📁 Similar Datasheet

KMOC3041 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3042 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3043 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3043H - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3043L - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3043S - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3021 - Optoisolators Triac Driver Output (COSMO Electronics)

KMOC3022 - OPTOISOLATORS TRIAC DRIVER OUTPUT (COSMO Electronics)

KMOC3023 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

KMOC3023H - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics)

Full PDF Text Transcription

Click to expand full text

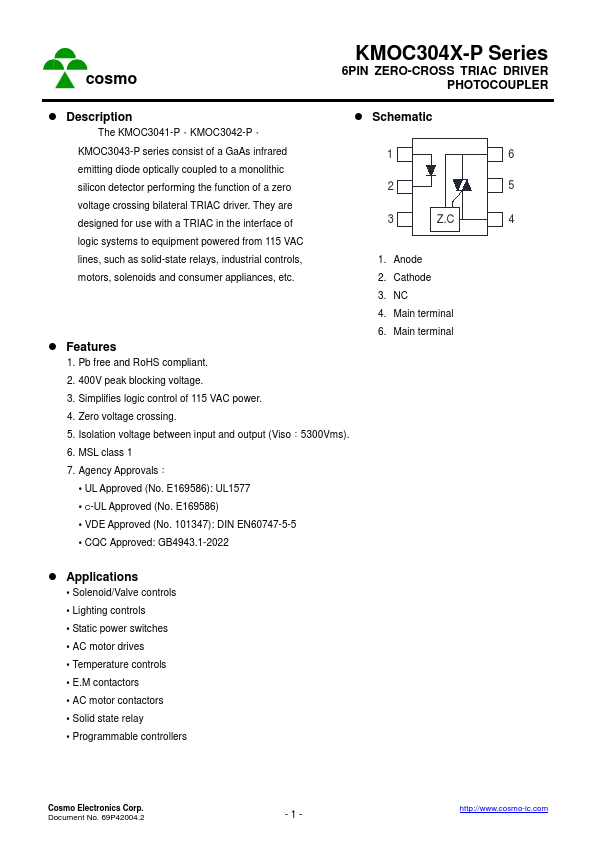

cosmo KMOC304X-P Series 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER  Description The KMOC3041-P、KMOC3042-P、  Schematic KMOC3043-P series consist of a GaAs infrared 1 6 emitting diode optically coupled to a monolithic silicon detector performing the function of a zero 2 5 voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of 3 Z.C 4 logic systems to equipment powered from 115 VAC lines, such as solid-state relays, industrial controls, 1. Anode motors, solenoids and consumer appliances, etc. 2. Cathode 3. NC 4. Main terminal  Features 1. Pb free and RoHS compliant. 6. Main terminal 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5.
