KMOC3043L Datasheet 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Manufacturer: COSMO Electronics

Overview: cosmo z.

Download the KMOC3043L datasheet PDF. This datasheet also includes the KMOC3043 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Datasheet Details

Part number KMOC3043L
Manufacturer COSMO Electronics
File Size 248.07 KB
Description 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Download KMOC3043L Download (PDF)

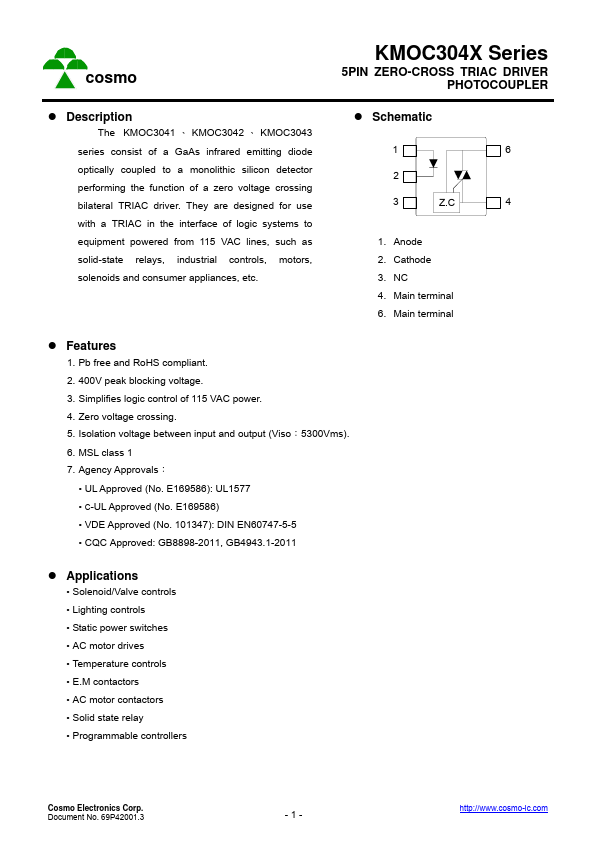

General Description

The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver.

They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

KMOC304X Series 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER z Schematic 1 6 2 3 Z.C 4 1.

Key Features

  • 1. Pb free and RoHS compliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • CQC Approved: GB8898-2011, GB4943.1-2011 z.
