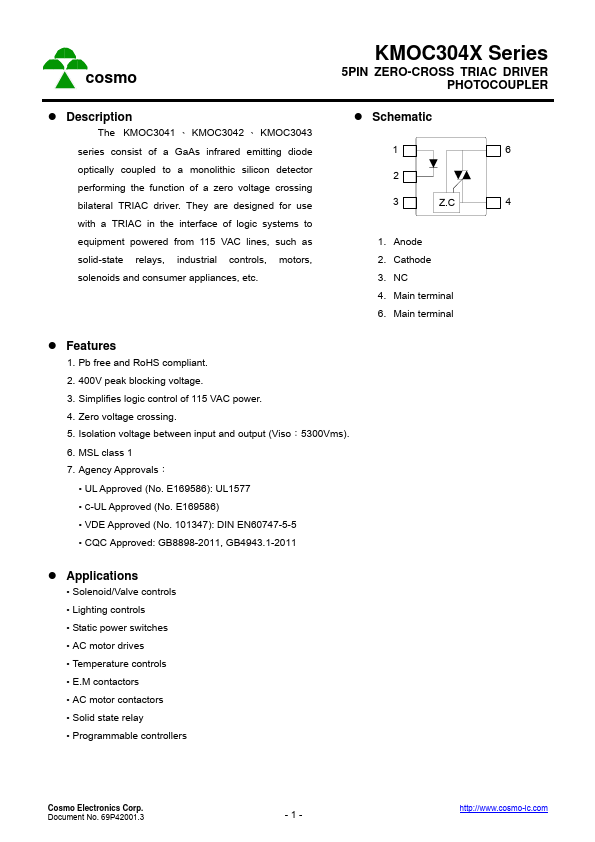

Description The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a Ga As infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc. KMOC304X Series 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER z Schematic Z.C 1. Anode 2. Cathode 3. NC 4. Main terminal 6. Main terminal z Features 1. Pb free and Ro HS pliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals： - UL Approved (No. E169586): UL1577 - C-UL Approved (No. E169586) - VDE Approved (No. 101347): DIN EN60747-5-5 - CQC Approved: GB8898-2011, GB4943.1-2011 z Applications - Solenoid/Valve controls - Lighting controls - Static power switches - AC motor drives - Temperature controls - E.M contactors - AC motor contactors - Solid state relay - Programmable controllers Cosmo Electronics Corp. Document No. 69P42001.3 -1- http://.cosmo-ic. cosmo z Outside Dimension 1. Dual-in-line type. KMOC304X Series 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER 2. Surface mount type. Unit：mm KMOC3043 KMOC3043S 7.62 6.50 7.62 6.50 0.25 13.00...
