KMOC3042-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Download the KMOC3042-P datasheet PDF (KMOC3041-P included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 6pin zero-cross triac driver photocoupler.

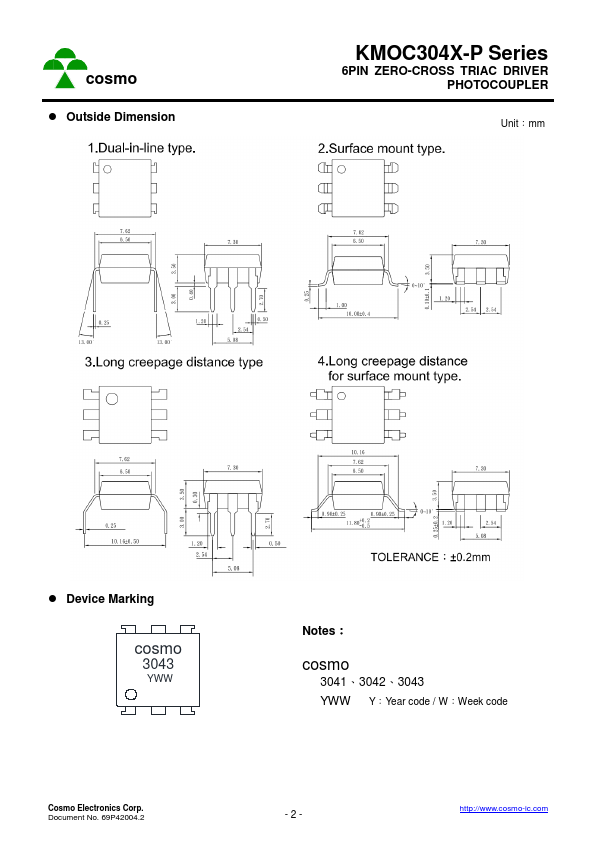

Description

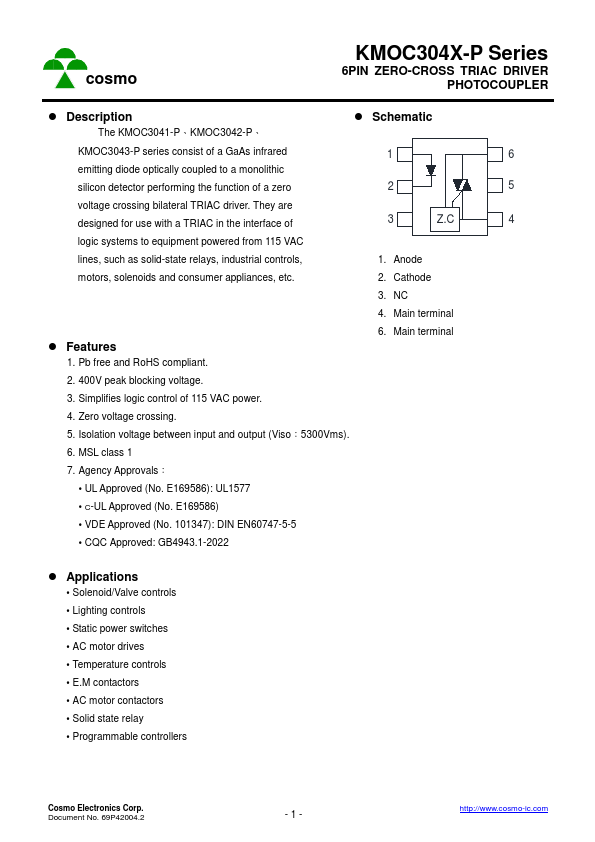

The KMOC3041-P、KMOC3042-P、

voltage crossing bilateral TRIAC driver.

Features

  • Pb free and RoHS compliant. 6. Main terminal 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • CQC Approved: GB4943.1-2022.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KMOC3041-P-Cosmo.pdf) that lists specifications for multiple related part numbers.

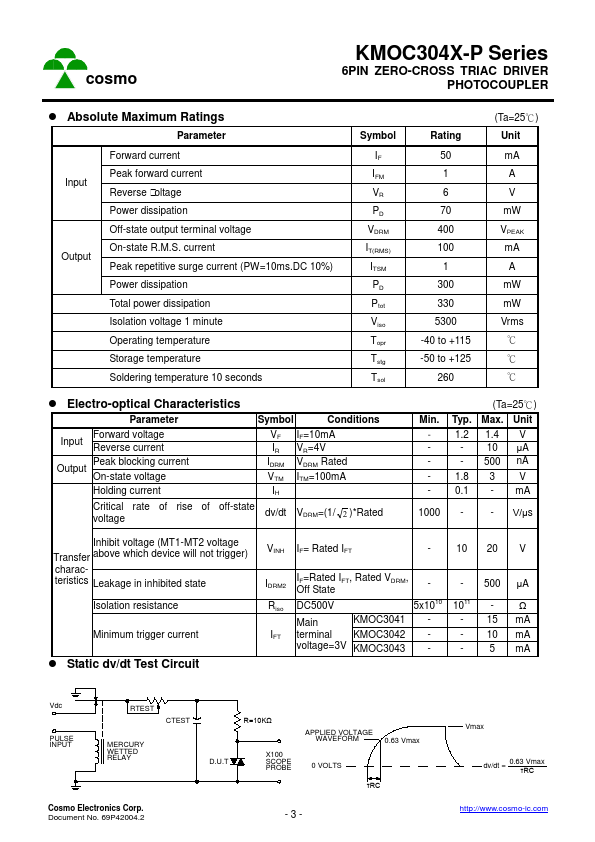

Datasheet Details

Part number KMOC3042-P
Manufacturer Cosmo
File Size 409.67 KB
Description 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KMOC3042-P Datasheet
