cosmo

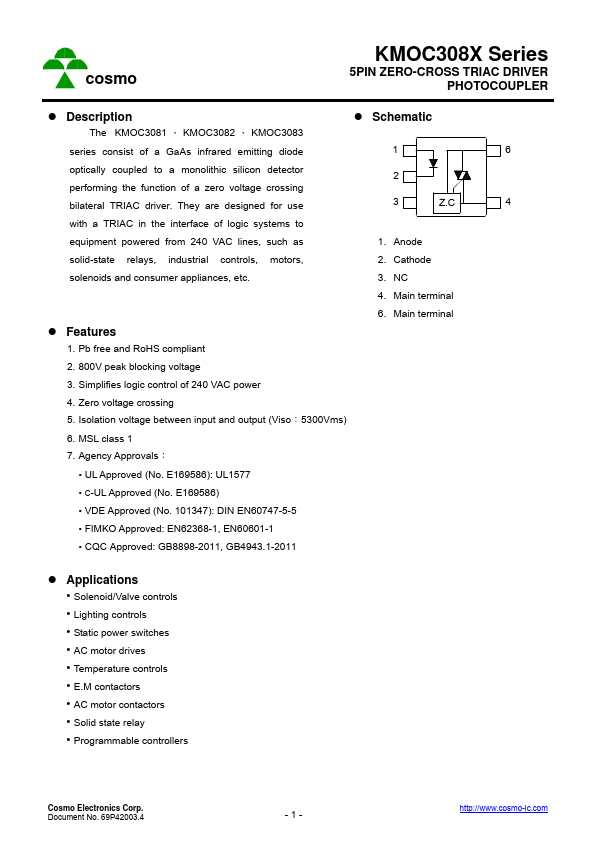

KMOC308X Series
5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Description
The KMOC3081 、 KMOC3082 、 KMOC3083
Schematic
series consist of a GaAs infrared emitting diode
1
6
optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use
2
3
Z.C
4
with a TRIAC in the interface of logic systems to
equipment powered from 240 VAC lines, such as
1. Anode
solid-state relays, industrial controls, motors,
2. Cathode
solenoids and consumer appliances, etc.
3. NC
4. Main terminal
6. Main terminal
Features
1. Pb free and RoHS compliant
2. 800V peak blocking voltage
3. Simplifies logic control of 240 VAC power
4. Zero voltage crossing
5.
