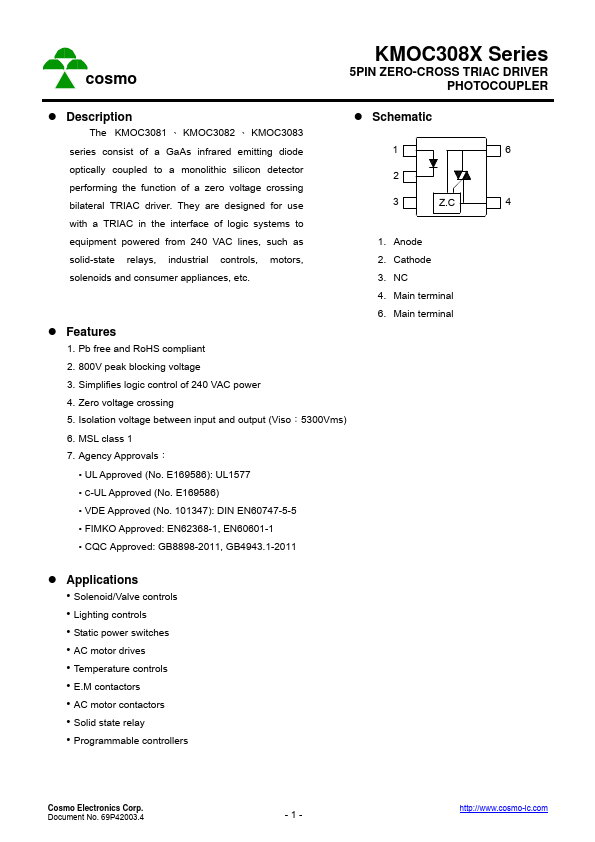

KMOC3083L Datasheet 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Manufacturer: COSMO Electronics

Download the KMOC3083L datasheet PDF. This datasheet also includes the KMOC3083 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KMOC3083_COSMOElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KMOC3083L
Manufacturer COSMO Electronics
File Size 234.30 KB
Description 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Download KMOC3083L Download (PDF)

General Description

The KMOC3081 、 KMOC3082 、 KMOC3083  Schematic series consist of a GaAs infrared emitting diode 1 6 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver.

They are designed for use 2 3 Z.C 4 with a TRIAC in the interface of logic systems to equipment powered from 240 VAC lines, such as 1.

Anode solid-state relays, industrial controls, motors, 2.

Overview

cosmo KMOC308X Series 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER.

Key Features

  • Pb free and RoHS compliant 2. 800V peak blocking voltage 3. Simplifies logic control of 240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1.
  • CQC Approved: GB8898-2011, GB4943.1-2011.
