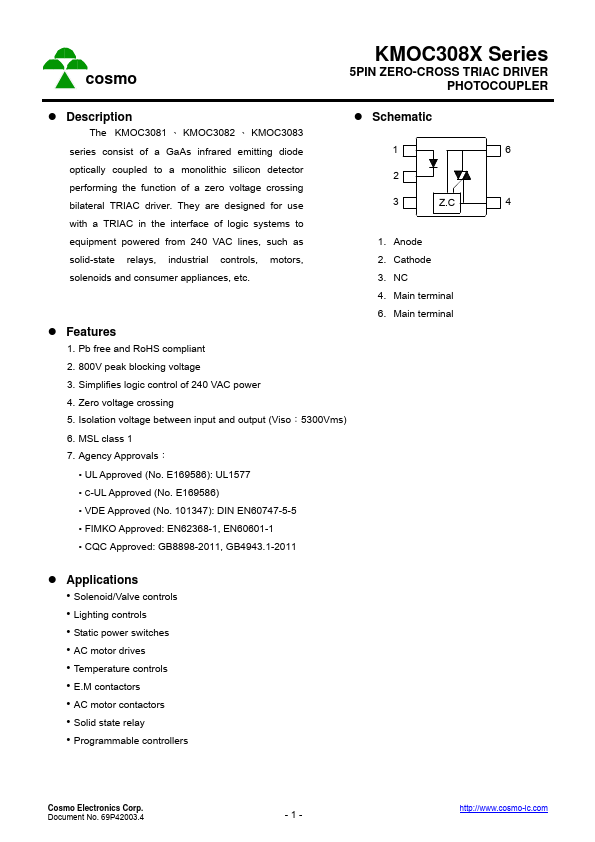

Description The KMOC3081 、 KMOC3082 、 KMOC3083 - Schematic series consist of a Ga As infrared emitting diode 6 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use Z.C 4 with a TRIAC in the interface of logic systems to equipment powered from 240 VAC lines, such as 1. Anode solid-state relays, industrial controls, motors, 2. Cathode solenoids and consumer appliances, etc. 3. NC 4. Main terminal 6. Main terminal - Features 1. Pb free and Ro HS pliant 2. 800V peak blocking voltage 3. Simplifies logic control of 240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals： - UL Approved (No. E169586): UL1577 - C-UL Approved (No. E169586) - VDE Approved (No. 101347): DIN EN60747-5-5 - FIMKO Approved: EN62368-1, EN60601-1 - CQC Approved: GB8898-2011, GB4943.1-2011 - Applications - Solenoid/Valve controls - Lighting controls - Static power switches - AC motor drives - Temperature controls - E.M contactors - AC motor contactors - Solid state relay - Programmable controllers Cosmo Electronics Corp. Document No. 69P42003.4 -1- http://.cosmo-ic. cosmo - Outside Dimension 1. Dual-in-line...
