KMOC3083S - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

This page provides the datasheet information for the KMOC3083S, a member of the KMOC3083 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER family.

Datasheet Summary

Description

The KMOC3081 、 KMOC3082 、 KMOC3083

optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver.

Features

  • Pb free and RoHS compliant 2. 800V peak blocking voltage 3. Simplifies logic control of 240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1.
  • CQC Approved: GB8898-2011, GB4943.1-2011.

📥 Download Datasheet

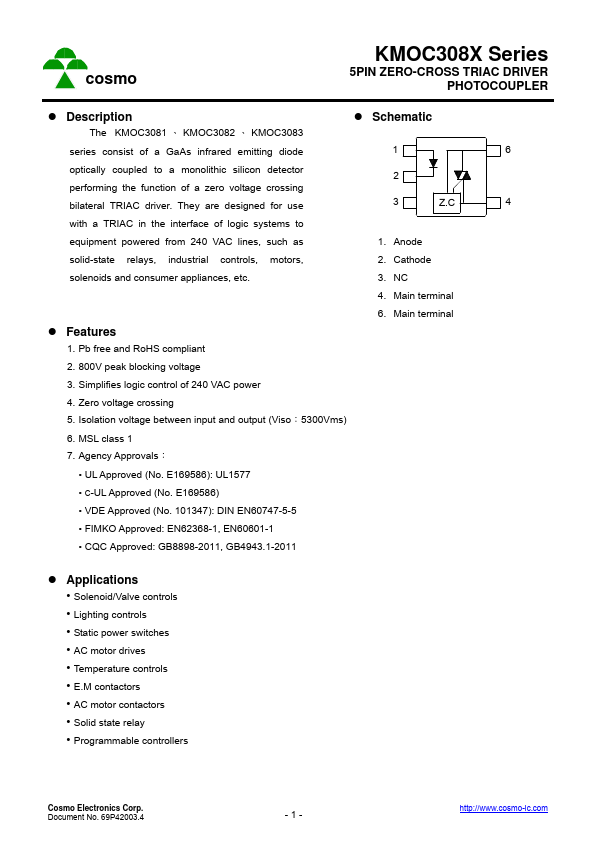

Datasheet preview – KMOC3083S

Datasheet Details

Part number KMOC3083S
Manufacturer COSMO Electronics
File Size 234.30 KB
Description 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KMOC3083S Datasheet

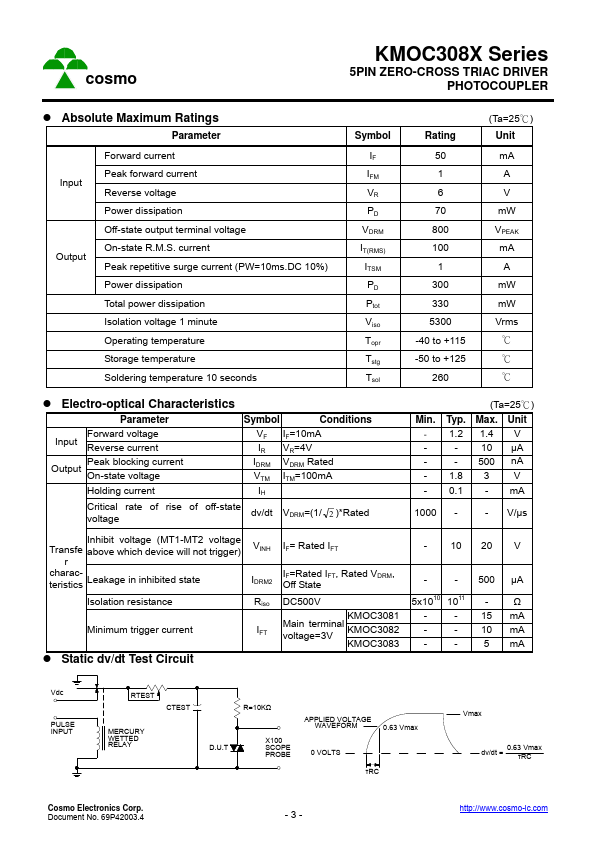

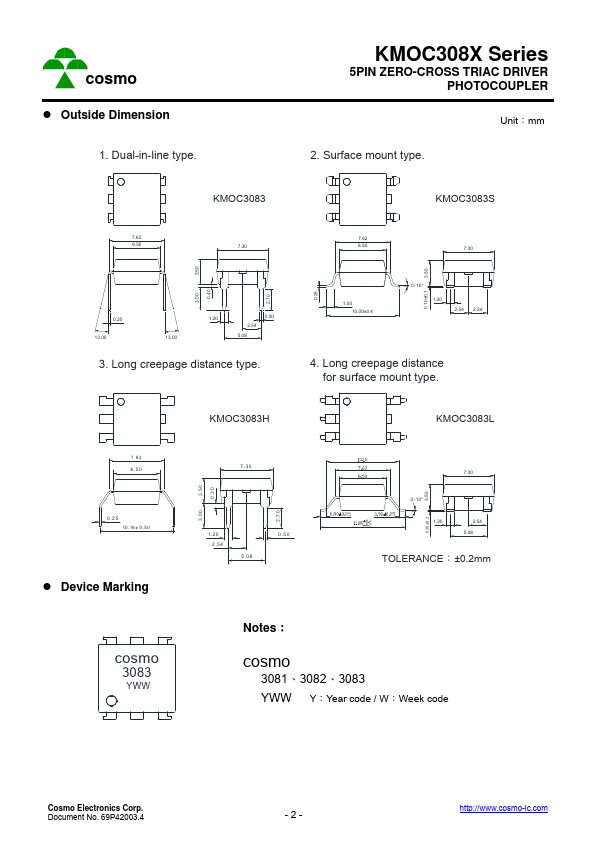

Additional preview pages of the KMOC3083S datasheet.

📁 Similar Datasheet

  • KMOC3011 - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011H - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011L - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011S - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012 - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012H - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012L - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012S - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3041-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3042-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
Other Datasheets by COSMO Electronics
  • KMOC3083 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3083H - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3083L - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3081 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3082 - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KMOC3021 - Optoisolators Triac Driver Output
  • KMOC3022 - OPTOISOLATORS TRIAC DRIVER OUTPUT
  • KMOC3023 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text
cosmo KMOC308X Series 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER  Description The KMOC3081 、 KMOC3082 、 KMOC3083  Schematic series consist of a GaAs infrared emitting diode 1 6 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use 2 3 Z.C 4 with a TRIAC in the interface of logic systems to equipment powered from 240 VAC lines, such as 1. Anode solid-state relays, industrial controls, motors, 2. Cathode solenoids and consumer appliances, etc. 3. NC 4. Main terminal 6. Main terminal  Features 1. Pb free and RoHS compliant 2. 800V peak blocking voltage 3. Simplifies logic control of 240 VAC power 4. Zero voltage crossing 5.
