CYT1000DE datasheet by CYT.
| Part number | CYT1000DE |
|---|---|
| Datasheet | CYT1000DE-CYT.pdf |
| File Size | 1.66 MB |
| Manufacturer | CYT |
| Description | single segment LED linear constant current control chip |
|
|

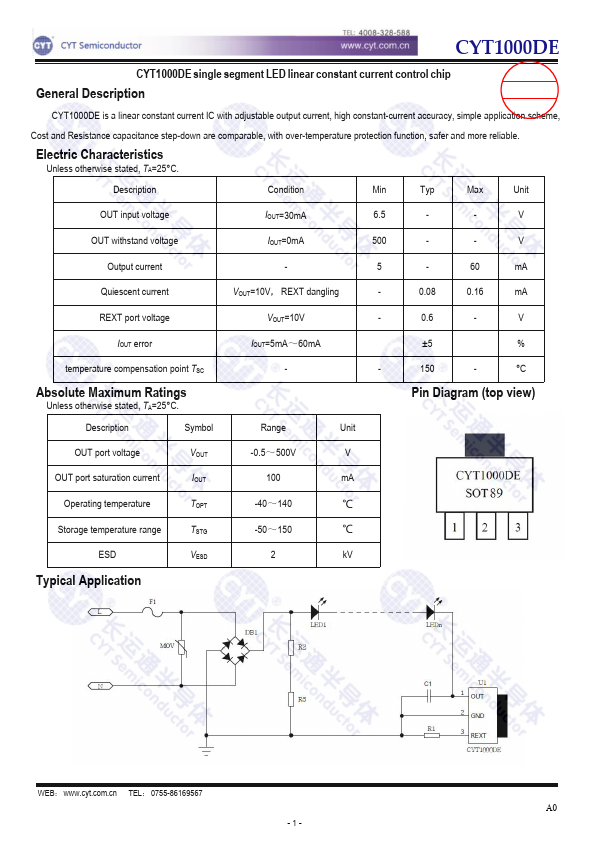

CYT1000DE is a linear constant current IC with adjustable output current, high constant-current accuracy, simple application scheme, Cost and Resistance capacitance step-down are parable, with over-temperature protection function, safer and more reliable. Electric Characteristics Unless otherwise stated, TA=25°C.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
| JXY | CYT1000A | Linear constant current LED Driver | JXY |
| JXY | CYT1000AE | Linear constant current LED Driver | JXY |
| JXY | CYT1000B | Linear constant current IC | JXY |
| Part Number | Description |
|---|---|
| CYT1000A | Dual-channel linear constant current LED control chip |
| CYT1000AE | single segment LED linear constant current control chip |
| CYT1000AEG | single segment LED linear constant current control chip |
| CYT1000AG | Dual-channel linear constant current LED control chip |
| CYT1000AT | single segment LED linear constant current control chip |
| CYT1000BG | single segment LED linear constant current control chip |
| CYT1002AG | single-segment line voltage compensation linear constant current LEDcontrol chip |
| CYT101 | Voltage and Current Controller |
| CYT1010BS | single segment LED linear constant current control chip |
| CYT16G | single segment LED linear constant current control chip |
