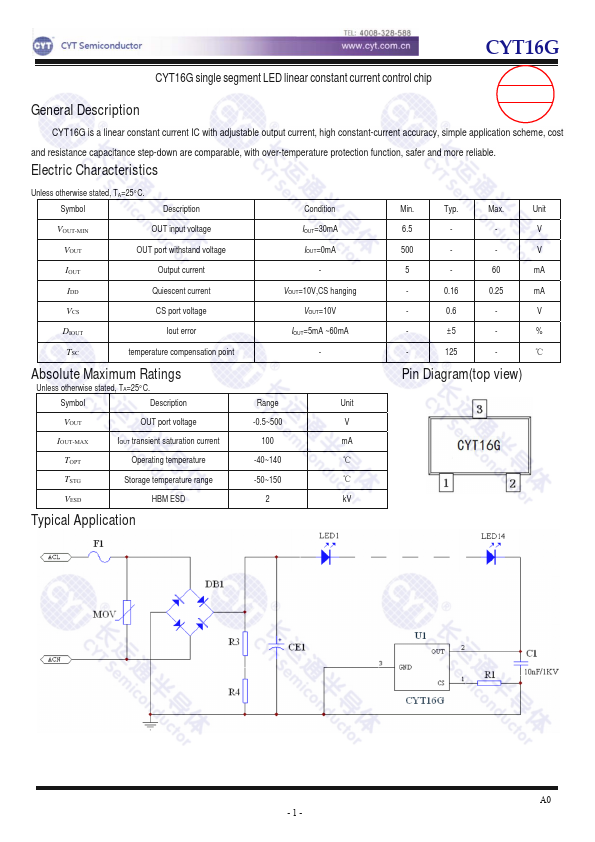

CYT16G
CYT16G is single segment LED linear constant current control chip manufactured by CYT.
CYT16G single segment LED linear constant current control chip
General Description
CYT16G is a linear constant current IC with adjustable output current, high constant-current accuracy, simple application scheme, cost and resistance capacitance step-down are parable, with over-temperature protection function, safer and more reliable.
Electric Characteristics
Unless otherwise stated, TA=25°C. Symbol
Description
Condition
Min.
Typ.
Max.
Unit
VOUT-MIN
OUT input voltage
VOUT
OUT port withstand voltage
IOUT
Output current
Quiescent current
CS port voltage
DIOUT
Iout error
TSC temperature pensation...
