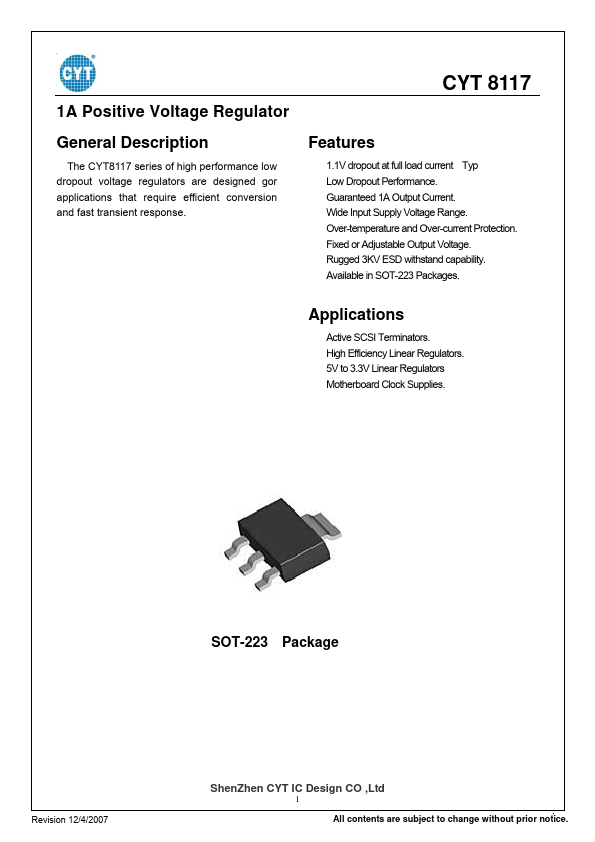

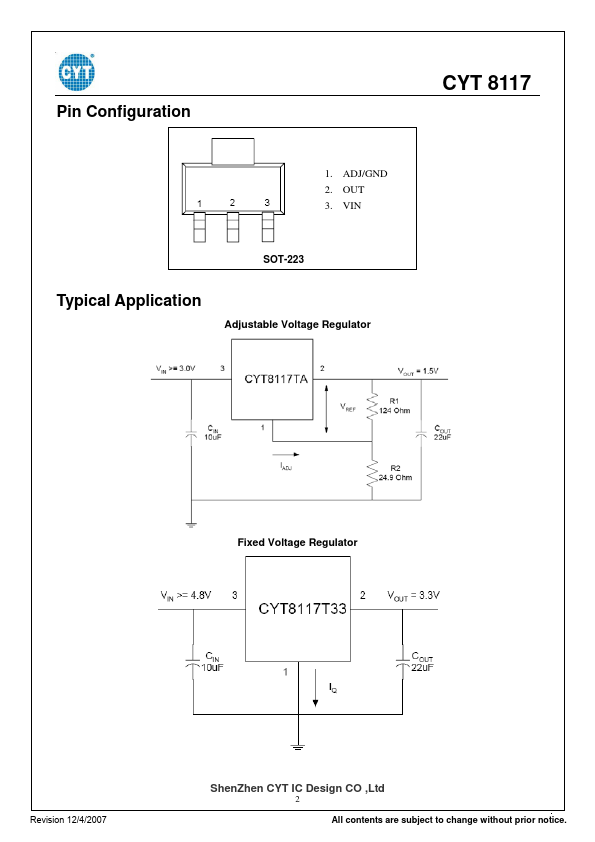

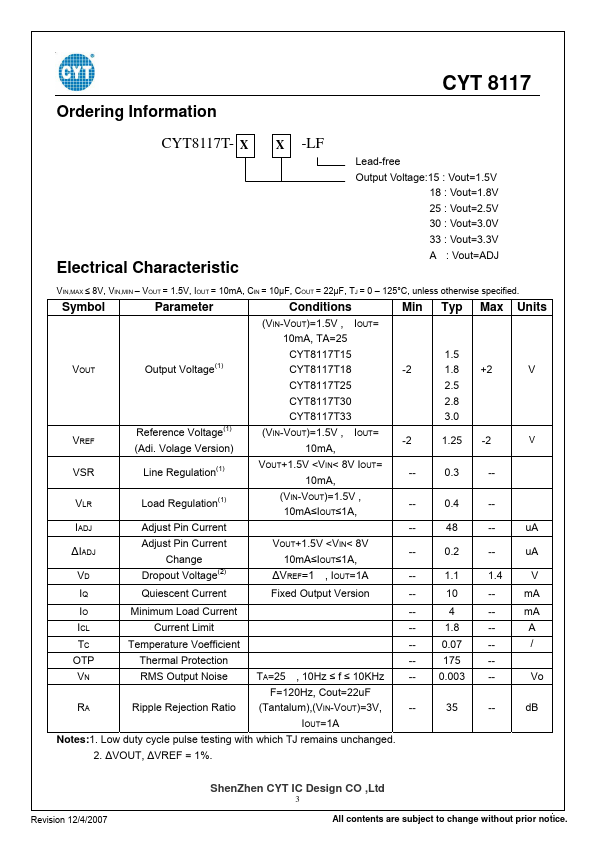

1A Positive Voltage Regulator CYT 8117 General Description The CYT8117 series of high performance low dropout voltage regulators are designed gor applications that require efficient conversion and fast transient response. Features µ 1.1V dropout at full load currentčTypĎ µ Low Dropout Performance. µ Guaranteed 1A Output Current. µ Wide Input Supply Voltage Range. µ Over-temperature and Over-current Protection. µ Fixed or Adjustable Output Voltage. µ Rugged 3KV ESD withstand capability. µ Available in SOT-223 Packages. Applications µ Active SCSI Terminators. µ High Efficiency Linear Regulators. µ 5V to 3.3V Linear Regulators µ Motherboard Clock Supplies. SOT-223 Package Revision 12/4/2007 Shen Zhen CYT IC Design CO ,Ltd All contents are subject to change without prior notice. Pin Configuration CYT 8117 1. ADJ/GND 2. OUT 3. VIN SOT-223 Typical Application Adjustable Voltage Regulator Fixed Voltage Regulator Revision 12/4/2007 Shen Zhen CYT IC Design CO ,Ltd All contents are subject to change without prior notice. Ordering Information CYT 8117 CYT8117T- X X -LF Electrical Characteristic Lead-free Output Voltage:15 : Vout=1.5V 18 : Vout=1.8V 25 : Vout=2.5V 30 : Vout=3.0V 33 : Vout=3.3V A : Vout=ADJ VIN,MAX ≤ 8V, VIN,MIN - VOUT = 1.5V, IOUT = 10m A, CIN = 10µF, COUT = 22µF, TJ =...
