Datasheet Details
| Part number | CZT5551 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 784.94 KB |
| Description | SURFACE MOUNT SILICON NPN TRANSISTOR |
| Datasheet | CZT5551_CentralSemiconductorCorp.pdf |
|
|
Overview: CZT5551 SURFACE MOUNT SILICON NPN TRANSISTOR w w w. c e n t r a l s e m i .
| Part number | CZT5551 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 784.94 KB |
| Description | SURFACE MOUNT SILICON NPN TRANSISTOR |
| Datasheet | CZT5551_CentralSemiconductorCorp.pdf |
|
|
|
: The CENTRAL SEMICONDUCTOR CZT5551 is a silicon NPN transistor manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high voltage amplifier applications.

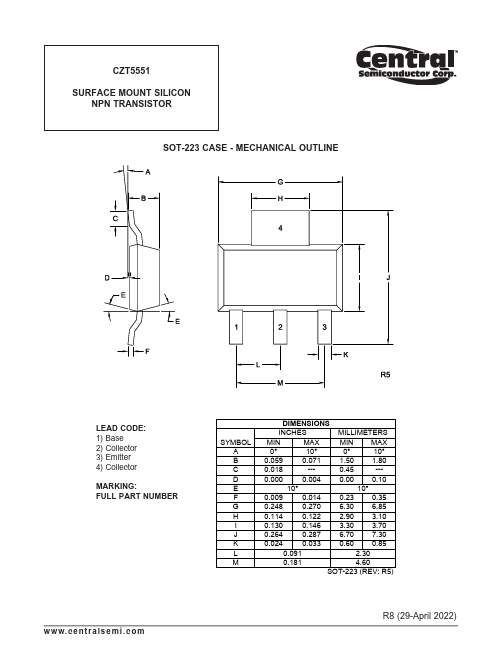

MARKING: FULL PART NUMBER SOT-223 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL UNITS VCBO 180 V VCEO 160 V VEBO 6.0 V IC 600 mA PD 2.0 W TJ, Tstg -65 to +150 °C ΘJA 62.5 °C/W ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN MAX UNITS ICBO VCB=120V 50 nA ICBO VCB=120V, TA=100°C 50 µA IEBO VEB=4.0V 50 nA BVCBO IC=100µA 180 V BVCEO IC=1.0mA 160 V BVEBO IE=10µA 6.0 V VCE(SAT) IC=10mA, IB=1.0mA 0.15 V VCE(SAT) IC=50mA, IB=5.0mA 0.20 V VBE(SAT) IC=10mA, IB=1.0mA 1.00 V VBE(SAT) IC=50mA, IB=5.0mA 1.00 V hFE VCE=5.0V, IC=1.0mA 80 hFE VCE=5.0V, IC=10mA 80 250 hFE VCE=5.0V, IC=50mA 30 fT VCE=10V, IC=10mA, f=100MHz 100 300 MHz Cob VCB=10V, IE=0, f=1.0MHz 6.0 pF Cib VEB=0.5V, IC=0, f=1.0MHz 20 pF hfe VCE=10V, IC=1.0mA, f=1.0kHz 50 200 NF VCE=5.0V, IC=200µA, RS=1kΩ, f=10Hz to 15.7kHz 8.0 dB R8 (29-April 2022) CZT5551 SURFACE MOUNT SILICON NPN TRANSISTOR SOT-223 CASE - MECHANICAL OUTLINE LEAD CODE: 1) Base 2) Collector 3) Emitter 4) Collector MARKING: FULL PART NUMBER w w w.
c e n t r a l s e m i .
