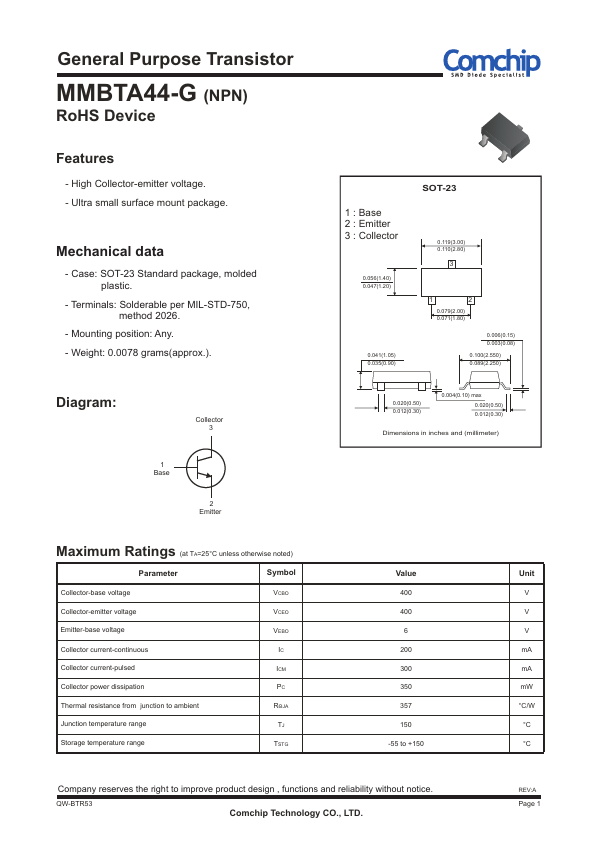

MMBTA44-G
MMBTA44-G is General Purpose Transistor manufactured by Comchip.
Features
- High Collector-emitter voltage.
- Ultra small surface mount package.
Mechanical data
- Case: SOT-23 Standard package, molded plastic.
- Terminals: Solderable per MIL-STD-750, method 2026.
- Mounting position: Any.
- Weight: 0.0078 grams(approx.).
Diagram:
Collector 3
1 Base
2 Emitter
Maximum Ratings (at TA=25°C unless otherwise noted)
Parameter
Symbol
Collector-base voltage
VCBO
Collector-emitter voltage
VCEO
Emitter-base voltage
VEBO
Collector current-continuous
Collector current-pulsed
Collector power dissipation
Thermal resistance from junction to ambient
RΘJA
Junction temperature range
Storage temperature range
TSTG
1 : Base 2 : Emitter 3 : Collector
0.056(1.40) 0.047(1.20)
0.041(1.05) 0.035(0.90)
SOT-23
0.119(3.00)...
