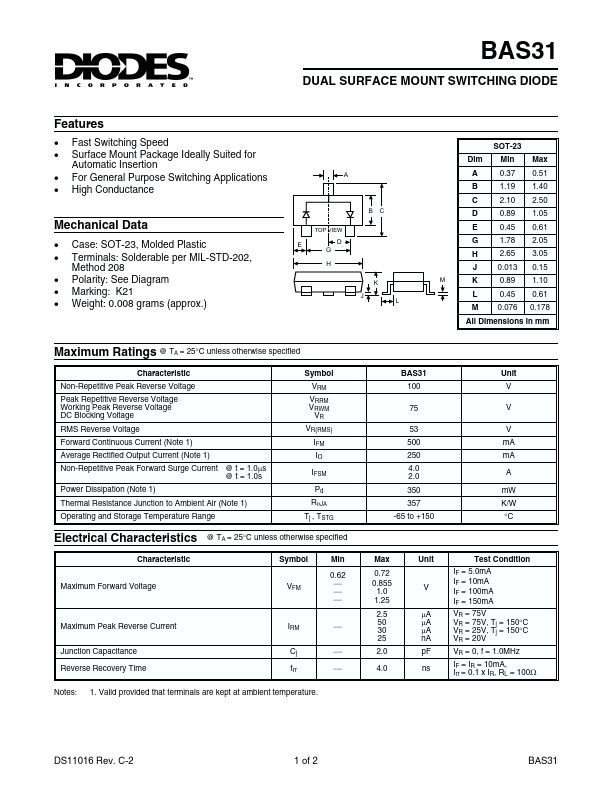

BAS31
BAS31 is DUAL SURFACE MOUNT SWITCHING DIODE manufactured by Diodes Incorporated.
Features
- Fast Switching Speed
- Surface Mount Package Ideally Suited for
Automatic Insertion
- For General Purpose Switching Applications
- High Conductance
Mechanical Data
- Case: SOT-23, Molded Plastic
- Terminals: Solderable per MIL-STD-202,
Method 208
- Polarity: See Diagram
- Marking: K21
- Weight: 0.008 grams (approx.)
TOP VIEW
SOT-23
Dim Min Max
0.37 0.51
1.19 1.40
2.10 2.50
0.89 1.05
0.45 0.61
1.78 2.05
2.65 3.05
J 0.013 0.15
0.89 1.10
0.45 0.61
M 0.076 0.178
All Dimensions in mm
Maximum Ratings @ TA = 25°C unless otherwise specified
Characteristic Non-Repetitive Peak Reverse...
