GBU404 Datasheet 4.0A STANDARD RECOVERY BRIDGE RECTIFIER

Manufacturer: Diodes Incorporated

Download the GBU404 datasheet PDF. This datasheet also includes the GBU4005 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

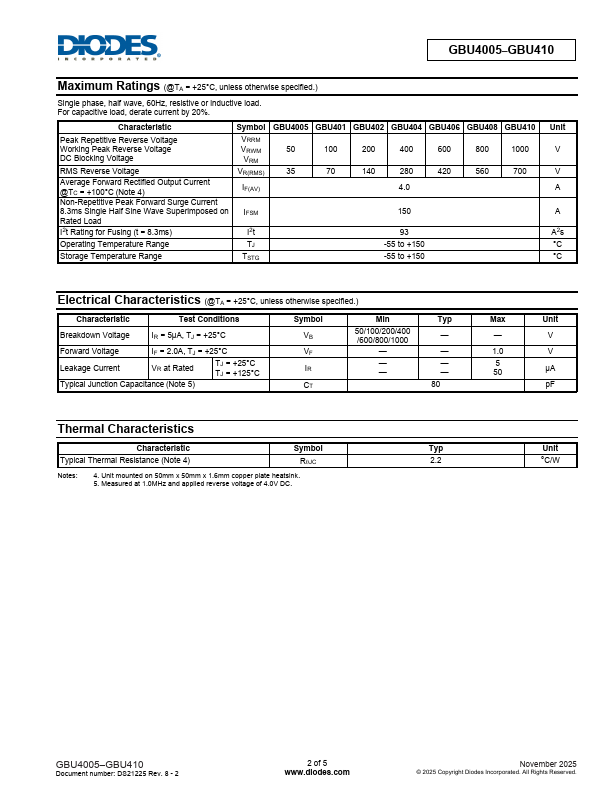

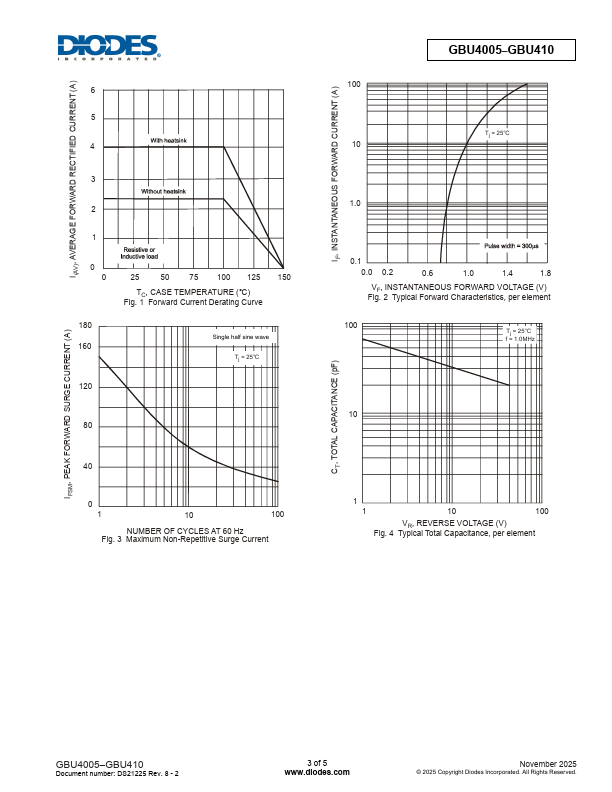

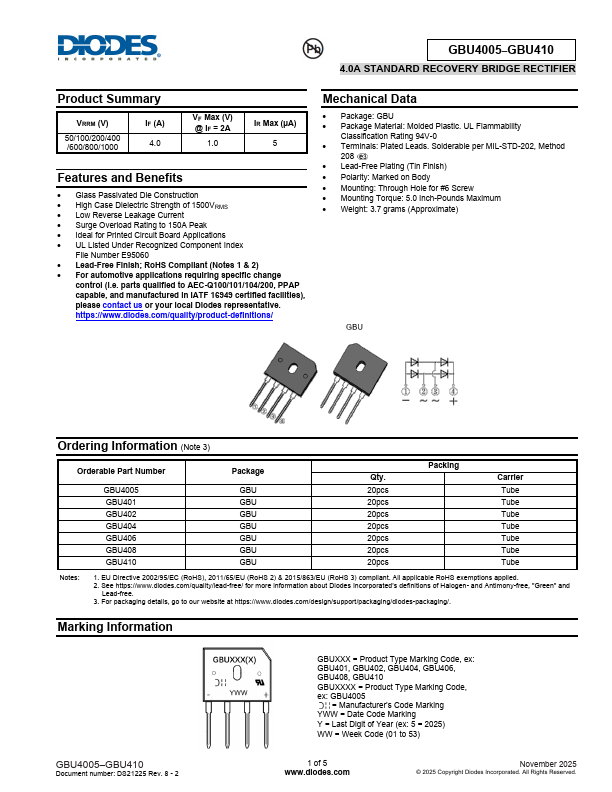

GBU404 4.0a standard recovery bridge rectifier by Diodes Incorporated - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GBU4005-DIODES.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GBU404
Manufacturer	Diodes Incorporated
File Size	316.81 KB
Description	4.0A STANDARD RECOVERY BRIDGE RECTIFIER
Download	GBU404 Download (PDF)

Overview

GBU4005–GBU410 4.0A STANDARD RECOVERY BRIDGE RECTIFIER Product Summary VRRM (V) 50/100/200/400 /600/800/1000 IF (A) 4.0 VF Max (V) @ IF = 2A 1.

Key Features

Glass Passivated Die Construction.
High Case Dielectric Strength of 1500VRMS.
Low Reverse Leakage Current.
Surge Overload Rating to 150A Peak.
Ideal for Printed Circuit Board.
