GBU406 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER

Download the GBU406 datasheet PDF. This datasheet also covers the GBU4005 variant, as both devices belong to the same 4.0a standard recovery bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass Passivated Die Construction.
  • High Case Dielectric Strength of 1500VRMS.
  • Low Reverse Leakage Current.
  • Surge Overload Rating to 150A Peak.
  • Ideal for Printed Circuit Board.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBU4005-DIODES.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GBU406 GLASS PASSIVATED CHIP SINGLE-PHASE BRIDGE RECTIFIER First Silicon
GBU406 4.0 AMP Glass Passivated Bridge Rectifiers SeCoS
GBU406 Single-Phase 4.0A Glass Passivated Bridge Rectifier SMC
GBU406 GLASS PASSIVATED BRIDGE RECTIFIER Zowie
GBU406 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER UPM

Other Datasheets by Diodes Incorporated

Part Number Description
GBU4005 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
GBU401 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
GBU402 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
GBU404 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
GBU408 4.0A STANDARD RECOVERY BRIDGE RECTIFIER

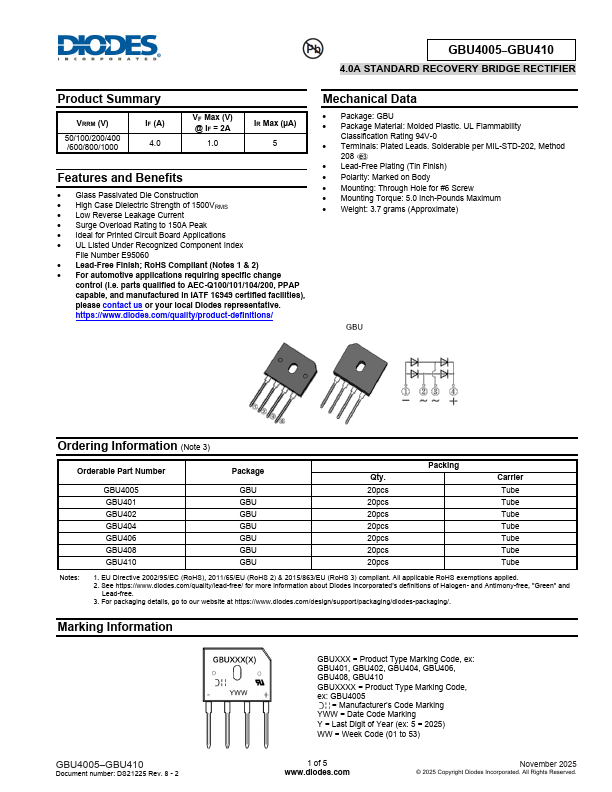

Full PDF Text Transcription

Click to expand full text
GBU4005–GBU410 4.0A STANDARD RECOVERY BRIDGE RECTIFIER Product Summary VRRM (V) 50/100/200/400 /600/800/1000 IF (A) 4.0 VF Max (V) @ IF = 2A 1.0 IR Max (µA) 5 Features and Benefits • Glass Passivated Die Construction • High Case Dielectric Strength of 1500VRMS • Low Reverse Leakage Current • Surge Overload Rating to 150A Peak • Ideal for Printed Circuit Board Applications • UL Listed Under Recognized Component Index File Number E95060 • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.
