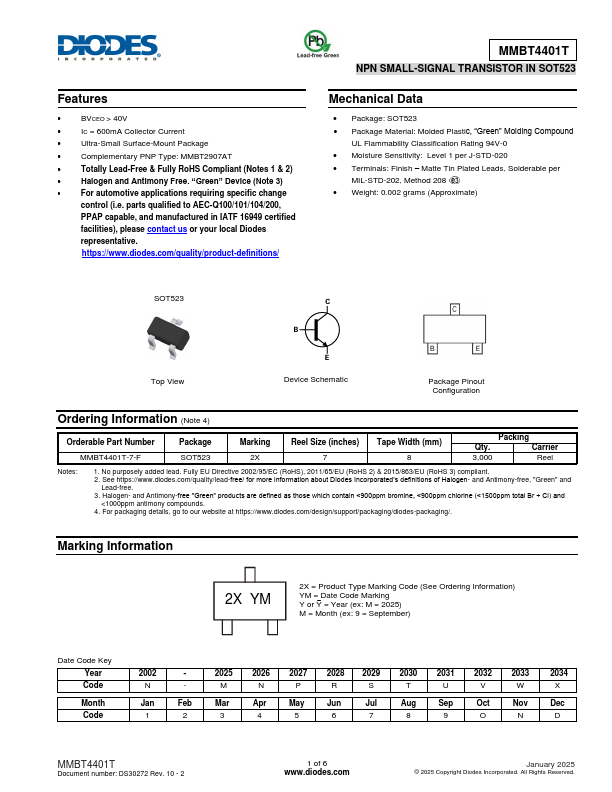

MMBT4401T
Key Features
- IC = 600mA Collector Current
- Ultra-Small Surface-Mount Package
- plementary PNP Type: MMBT2907AT
- Totally Lead-Free & Fully RoHS compliant (Notes 1 &
- Halogen and Antimony Free. “Green” Device (Note
- Package: SOT523
- Package Material: Molded Plastic, “Green” Molding pound UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
- Weight: 0.002 grams (Approximate) SOT523 C B Top View E Device Schematic Package Pinout Configuration
