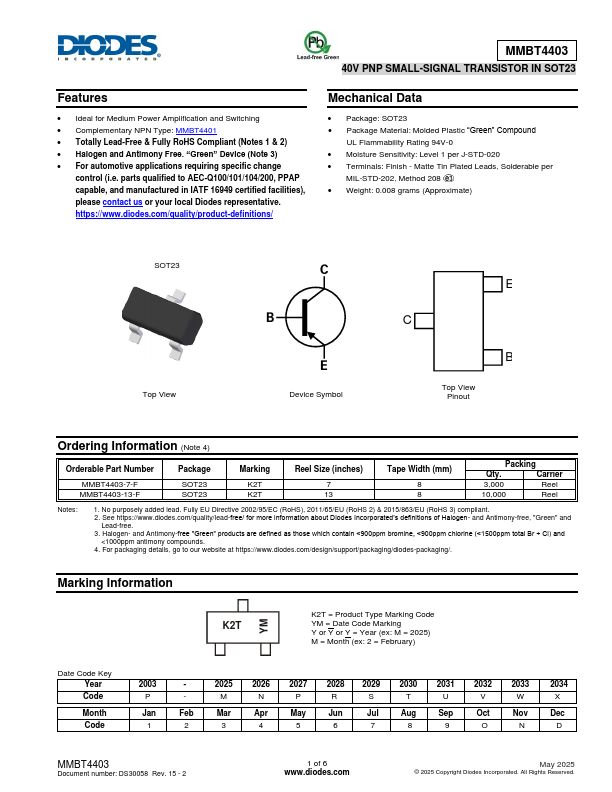

MMBT4403 Overview
Key Features
- Ideal for Medium Power Amplification and Switching
- Complementary NPN Type: MMBT4401
- Totally Lead-Free & Fully RoHS Compliant (Notes 1 &
- Halogen and Antimony Free. “Green” Device (Note
- Package: SOT23
- Package Material: Molded Plastic “Green” Compound UL Flammability Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
- Weight: 0.008 grams (Approximate) SOT23 Top View C B E Device Symbol E C B Top View Pinout
