DTQ2308SJ - 30V N-Channel Super Junction Power MOSFET

Key Features

  • DT-Trench Power MOSFET.
  • Ultra Small DFN2X2 Chipscale Packaging Reduces Footprint Area.

📥 Download Datasheet

Datasheet Details

Part number DTQ2308SJ
Manufacturer Din-Tek
File Size 380.60 KB
Description 30V N-Channel Super Junction Power MOSFET
Datasheet download datasheet DTQ2308SJ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTQ20P2 (DTQ-xxx) Service Manual Daewoo
DTQ20V1 (DTQ-xxx) Service Manual Daewoo
DTQ-13V6FCB Color TV Daewoo
DTQ-13V6FCP Color TV Daewoo
DTQ-14D7SS Service Manual DAEWOO

Other Datasheets by Din-Tek

Part Number Description
DTQ2318 30V N-Channel Power MOSFET
DTQ2115 15V P-Channel MOSFET
DTQ218P015 15V P-Channel MOSFET
DTQ2200 30V N-Channel MOSFET
DTQ2208 20V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

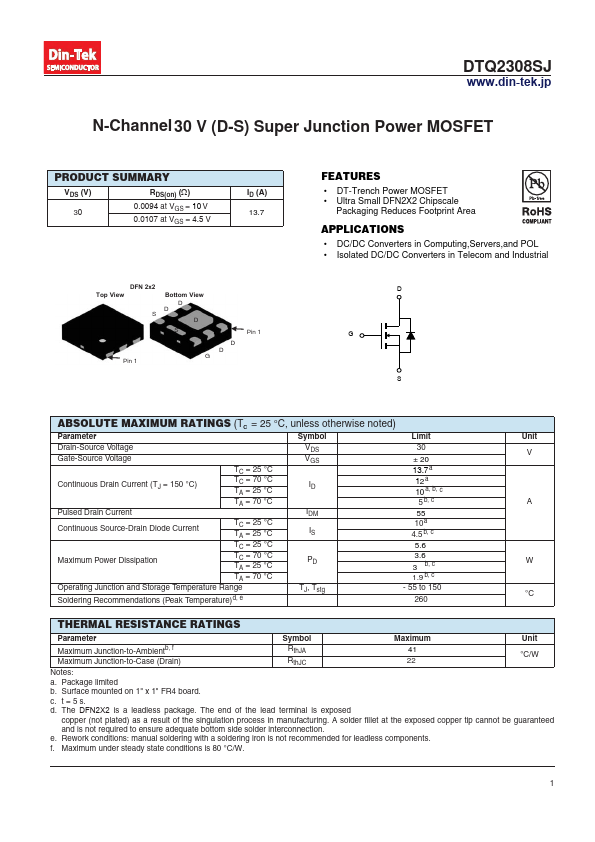

DTQ2308SJ ZZZGLQWHNMS N-Channel 30 V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (:) 3 0.0094 at VGS = 10 V 0.0107 at VGS = 4.5 V ID (A) 13.7 ')1[ 7RS9LHZ S %RWWRP9LHZ D D D S Pin 1 D D G Pin 1 FEATURES • DT-Trench Power MOSFET • Ultra Small DFN2X2 Chipscale Packaging Reduces Footprint Area APPLICATIONS • DC/DC Converters in Computing,Servers,and POL • Isolated DC/DC Converters in Telecom and Industrial D G S ABSOLUTE MAXIMUM RATINGS (Tc = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 13.
