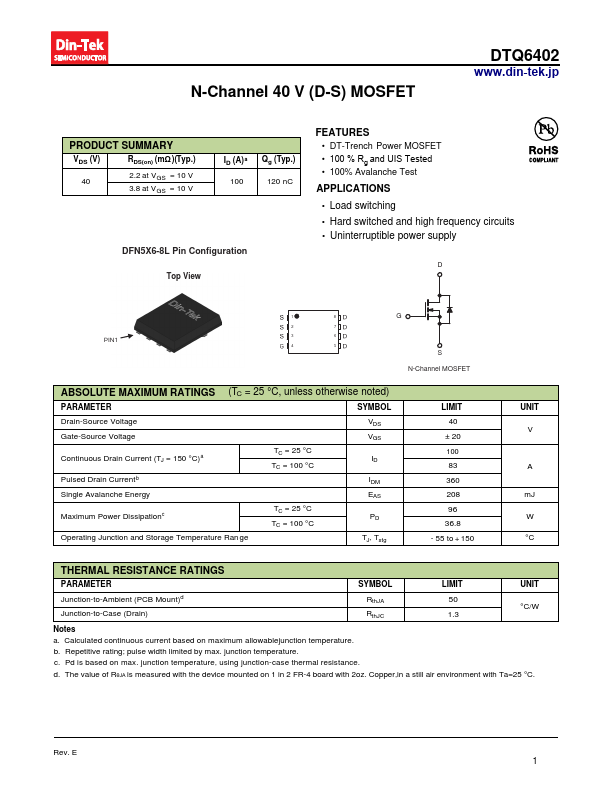

DTQ6402
FEATURES
- DT-Trench Power MOSFET
- 15J DQG8,67HVWHG
- 100% Avalanche Test
APPLICATIONS Load switching Hard switched and high frequency circuits Uninterruptible power supply
PIN1
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C)a Pulsed Drain Currentb Single Avalanche Energy Maximum Power Dissipationc Operating Junction and Storage Temperature Ran ge
TC = 25 °C TC = 100 °C
TC = 25 °C TC = 100 °C
VDS VGS ID IDM EAS PD TJ, Tstg
LIMIT 40 ± 20 100 83 360 208 96 36.8
- 55 to + 150
UNIT V
A m J W °C
THERMAL RESISTANCE RATINGS
PARAMETER
SYMBOL
LIMIT
UNIT
Junction-to-Ambient (PCB Mount)d Junction-to-Case (Drain)
Rth JA Rth JC
50 °C/W
Notes a. Calculated continuous current based on maximum allowablejunction temperature. b. Repetitive rating; pulse width limited by max. junction temperature. c. Pd is based on...
