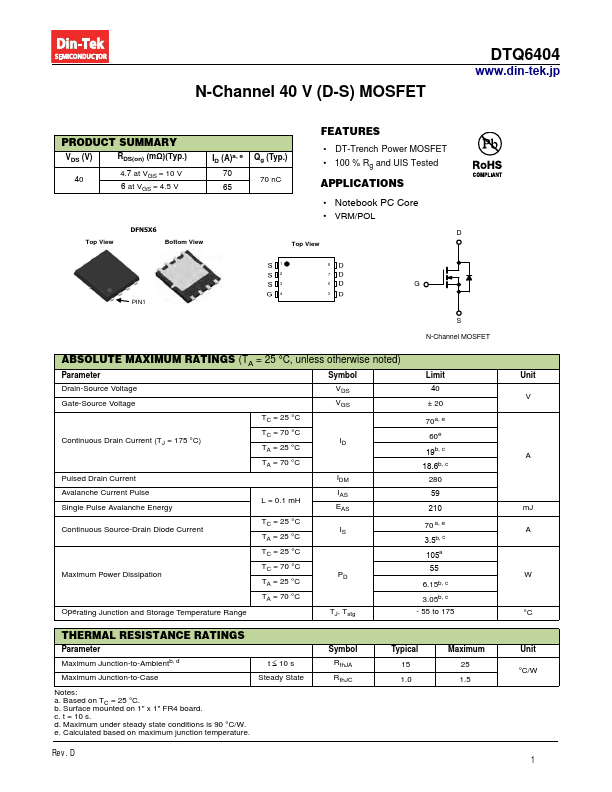

N-Channel 40 V (D-S) MOSFET
DTQ6404
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (mΩ)(Typ.)
40
4.7 at VGS = 10 V
6 at VGS = 4.5 V
ID (A)a, e 70 65
Top View
DFN5X6 Bottom View
Qg (Typ.) 70 nC
FEATURES • DT-Trench Power MOSFET • 100 % Rg and UIS Tested
APPLICATIONS
• Notebook PC Core • VRM/POL
D Top View
PIN1
1
8
2
7
3
6
4
5
G
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
VDS
Gate-Source Voltage
VGS
TC = 25 °C
Continuous Drain Current (TJ = 175 °C)
TC = 70 °C ID
TA = 25 °C
TA = 70 °C
Pulsed Drain Current
IDM
Avalanche Current Pulse Single Pulse Avalanche Energy
IAS L = 0.
