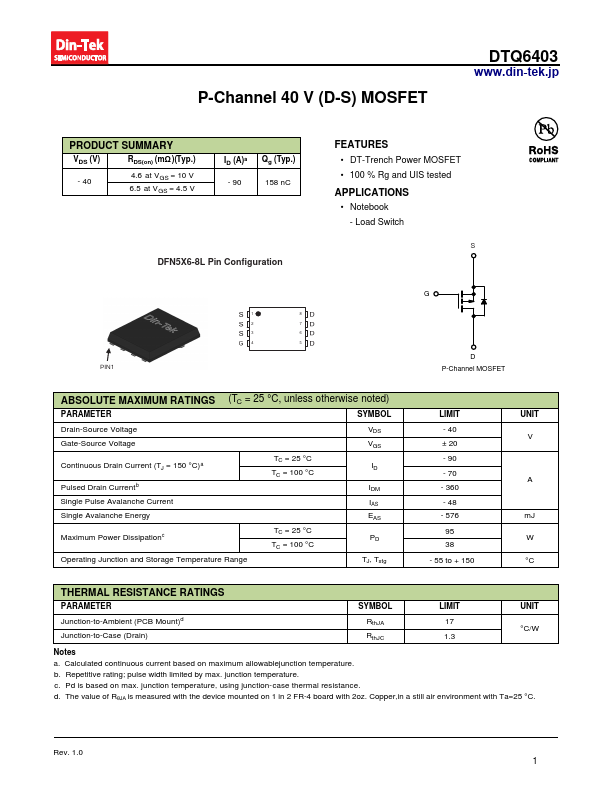

DTQ6403
DTQ6403 is 40V P-Channel MOSFET manufactured by Din-Tek Semiconductor.
FEATURES
- DT-Trench Power MOSFET
- 100 % Rg and UIS tested
APPLICATIONS
- Notebook
- Load Switch
PIN1
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (TJ = 150 °C)a
Pulsed Drain Currentb Single Pulse Avalanche Current Single Avalanche Energy
Maximum Power Dissipationc
TC = 25 °C ID
TC = 100 °C IDM IAS EAS
TC = 25 °C PD
TC = 100 °C
Operating Junction and Storage Temperature Range
TJ, Tstg
LIMIT
- 40 ± 20
- 90
- 70
- 360
- 48
- 576 95 38
- 55 to + 150
UNIT V
A m J W °C
THERMAL RESISTANCE RATINGS
PARAMETER
SYMBOL
LIMIT...
