BAV70DW - SURFACE MOUNT SWITCHING DIODE ARRAY

Key Features

  • Fast Switching Speed.
  • Small Surface Mount Package.
  • Low Leakage Current.
  • Two “BAV70” Circuits in One Package.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. "Green" Device (Note 3) BAV70DW.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV70DW SMD Switching Diode Array Formosa MS
BAV70DW Switching Diode SeCoS
BAV70DW SURFACE MOUNT FAST SWITCHING DIODE WON-TOP
BAV70DW Switching Diodes MCC
BAV70DW Surface Mount Fast Switching Diodes LGE

Other Datasheets by Diodes Incorporated

Part Number Description
BAV70DV SURFACE MOUNT SWITCHING DIODE ARRAY
BAV70 DUAL SURFACE-MOUNT SWITCHING DIODE
BAV70HDW SURFACE MOUNT SWITCHING DIODE ARRAY
BAV70HDWQ SURFACE MOUNT SWITCHING DIODE ARRAY
BAV70LP DUAL SURFACE MOUNT SWITCHING DIODE

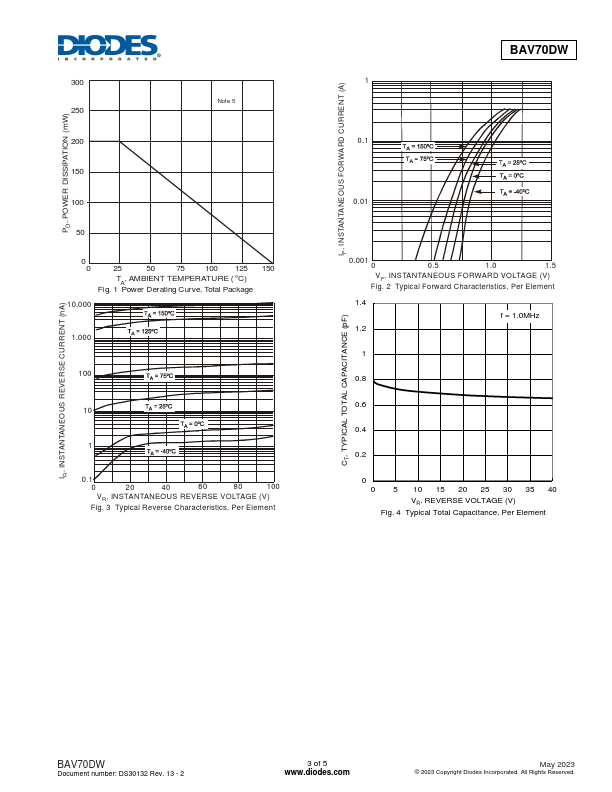

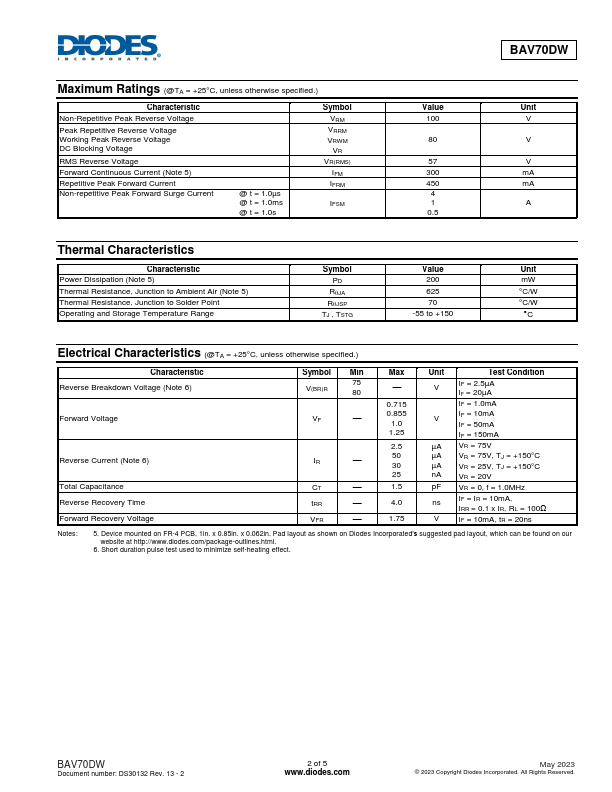

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features  Fast Switching Speed  Small Surface Mount Package  Low Leakage Current  Two “BAV70” Circuits in One Package  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. "Green" Device (Note 3) BAV70DW SURFACE MOUNT SWITCHING DIODE ARRAY Mechanical Data  Case: SOT-363  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020D  Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead-Free Plating). Solderable per MIL-STD-202, Method 208  Orientation: See Diagram  Weight: 0.
